Rose Chart

Overview

A rose chart is a visualization used to compare the magnitude of values across categorical dimensions arranged radially around a central point. Instead of using the angle to represent category size, a rose chart varies the radius or length of each segment, making differences in value visually distinct. You can use rose charts to highlight category-to-category variation, identify outliers, or demonstrate cyclical patterns. You can also enhance a rose chart by applying color, labels, or tooltips to clarify category meaning. This article explains the requirements for building a rose chart and provides an overview of the key customization options available.

Example

This is an example of the rose chart that displays profit by month using the following Excel dataset:

SalesData.xlsx

The Profit measure is bound to the Value data binding slot. The OrderDate(Month) measure is bound to the Axis (Category) slot.

Data Binding

The Data Binding tab lets you map your dataset fields to the chart’s visual elements. The available data binding slots determine what data is displayed and how it appears in the chart.

• Values – Bind the numeric field or measure that determines the size/length/value of each bar, slice, point, or shape. Larger values produce proportionally larger bars/slices/points.

• Axis (Category) – Bind the field whose distinct values define each bar/slice/point category. These values appear along the X-axis, Y-axis, or around the circle, depending on the chart type.

• Legend (Series) – Bind the field that determines the grouping shown in the chart legend. Use this to categorize and color bars/slices/lines by an additional dimension.

• Trellis Columns – Bind a field to create multiple charts arranged in columns, each filtered by a unique value in that field.

• Trellis Rows – Bind a field to create multiple charts arranged in rows, each filtered by a unique value in that field.

• Tooltip – Bind additional fields to display as contextual information when users hover over a bar, slice, point, or shape.

• Drill Down – Configure interactive navigation into more detailed data. You can set Drill Down Mode to:

  • Pre-set Targets – Specify fields or charts to drill into when an element is clicked.

  • Pre-set Paths – Define a hierarchical path so users can explore data through multiple levels.

Customize Rose Chart

A rose chart displays the relative magnitude of values using equal-angle segments with varying radial lengths, allowing users to compare category values based on distance from the center rather than angular size. After adding the visualization to the designer and binding your dataset, configure the following fields in the Data Binding tab:

• Values – The numeric measure that determines the radial length of each rose petal. This measure is aggregated and used to calculate how far each petal extends from the center, making differences in magnitude visually apparent.

• Legend (Series) – The categorical field that divides the rose into multiple petals. Each unique legend value is rendered as its own petal, showing how each category contributes relative to the others.

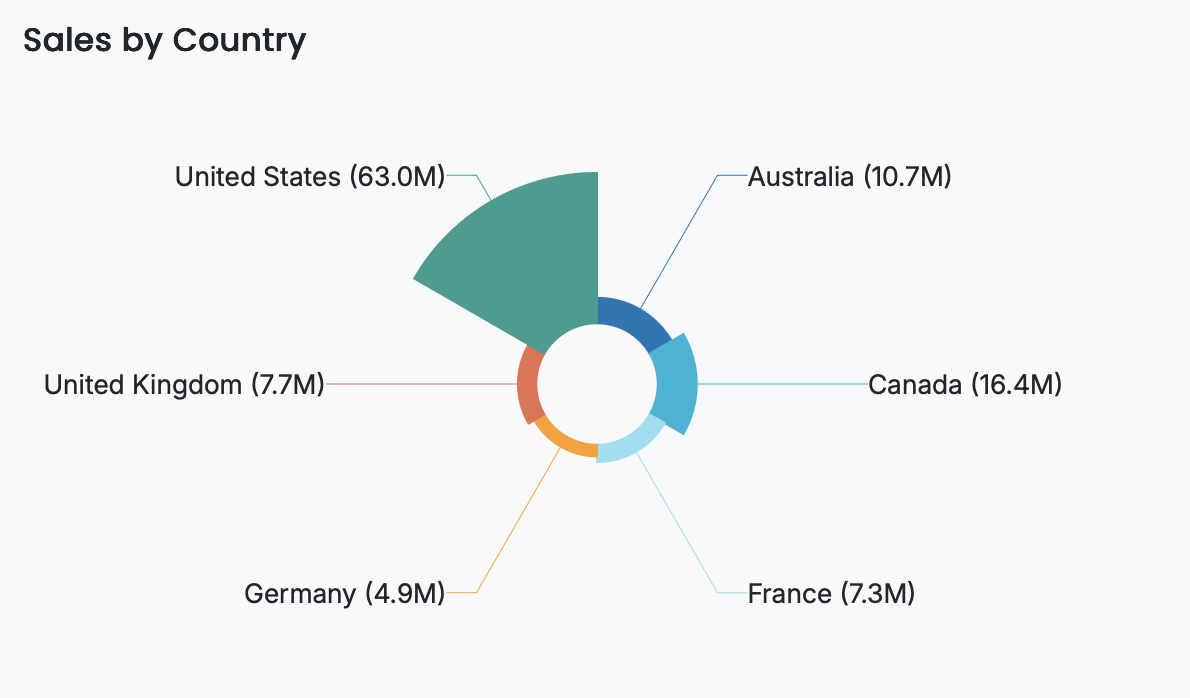

For example, a rose chart may plot Sales in the Values slot and Country in the Legend (Series) slot, producing a clear visualization of how sales values compare across categories based on their radial extent.

Customize the Chart Style

The Chart Style section contains the visual and formatting settings that define the appearance of your column chart. These options are managed in the Inspector Panel and include layout, spacing, color, and stylistic adjustments that help you tailor the chart to your dashboard’s design requirements.

Scenario Name

The Scenario Name is the label shown in Wyn’s Explorer.

• Choose a name that reflects the purpose of the visualization.

• For more details, see Explorer documentation.

Palette

Controls whether the chart uses theme colors or custom colors.

• Off (default): chart uses the dashboard theme.

• On: unlocks manual color selection for each column.

Color Assignments

Defines custom colors when Maintain Color Assignments is enabled.

• Assign colors to individual categories or series.

• Use when theme colors do not meet your design needs.

Graph Opacity

Adjusts the transparency of the columns.

• Default is 100% (fully opaque).

• Lower values create translucent columns for layered or subtle visual styles.

Start Angle

Defines the position where the first slice of the donut chart begins.

The default value is 0, which places the first slice at the top of the chart and draws subsequent slices clockwise.

Adjusting the start angle rotates the entire donut, which can help improve readability or align slices with other visual elements.

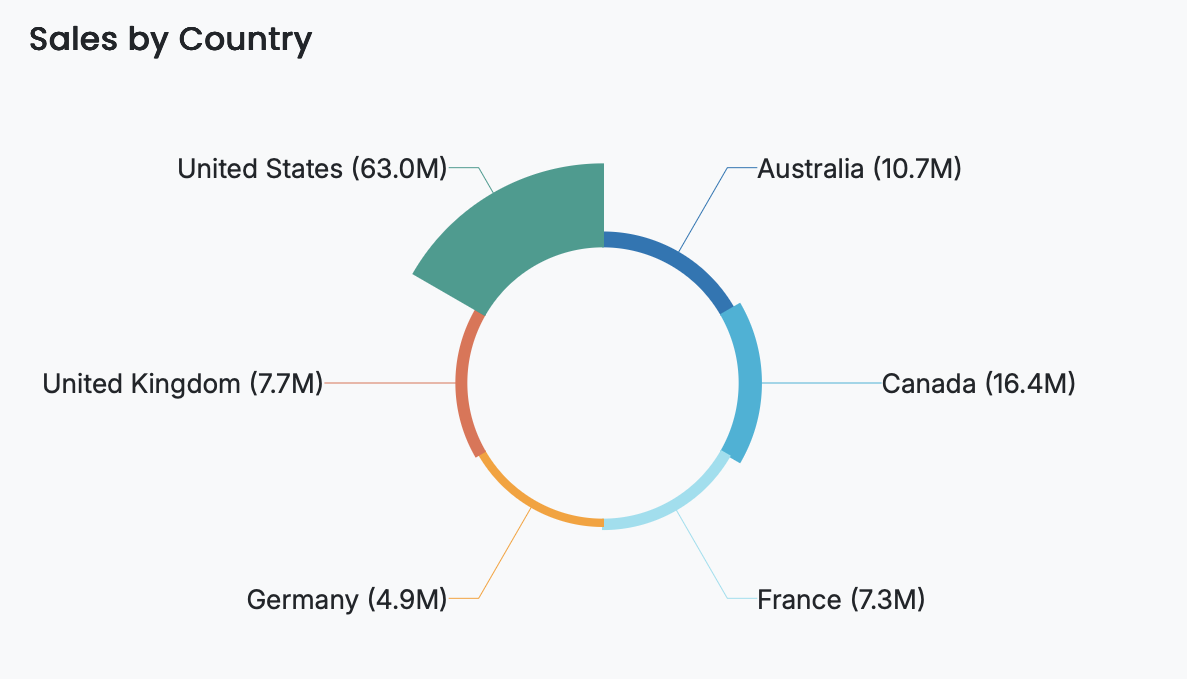

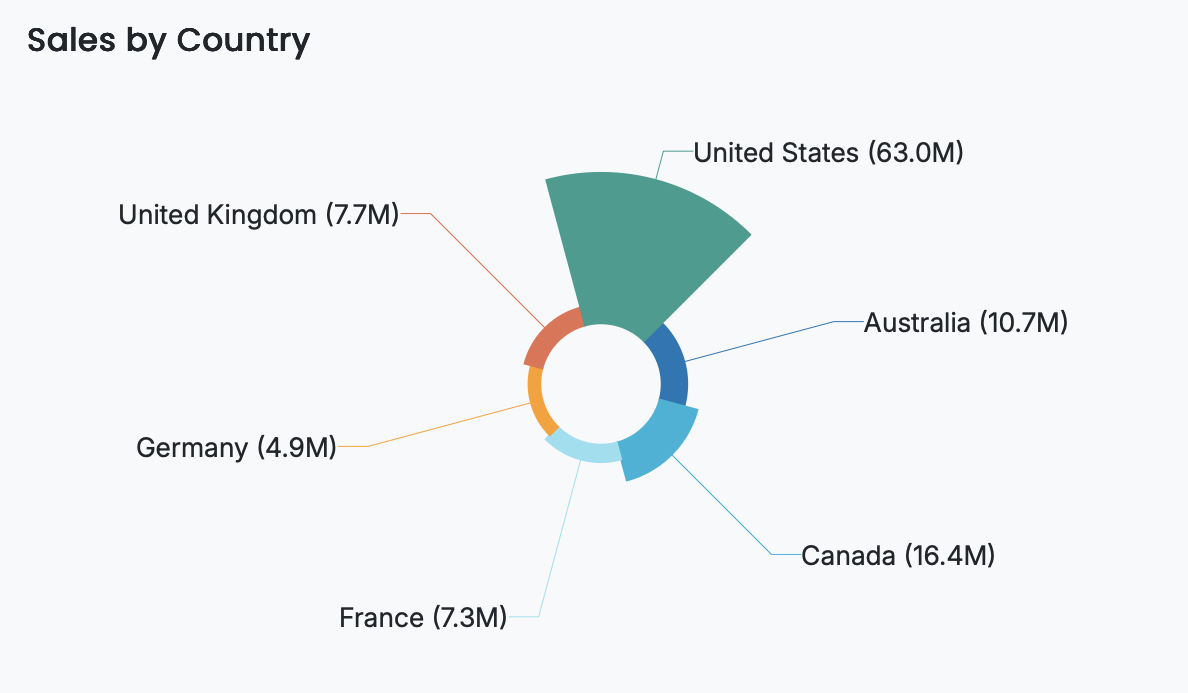

Here is an example of a donut chart with a start angle of 45 degrees.

Sweep

Controls how much of the circular shape the donut chart covers.

The default value is 360, rendering a full circular donut chart.

Reducing the sweep value creates a partial donut, such as a semi-circle, which can be useful for compact layouts or gauge-style visualizations.

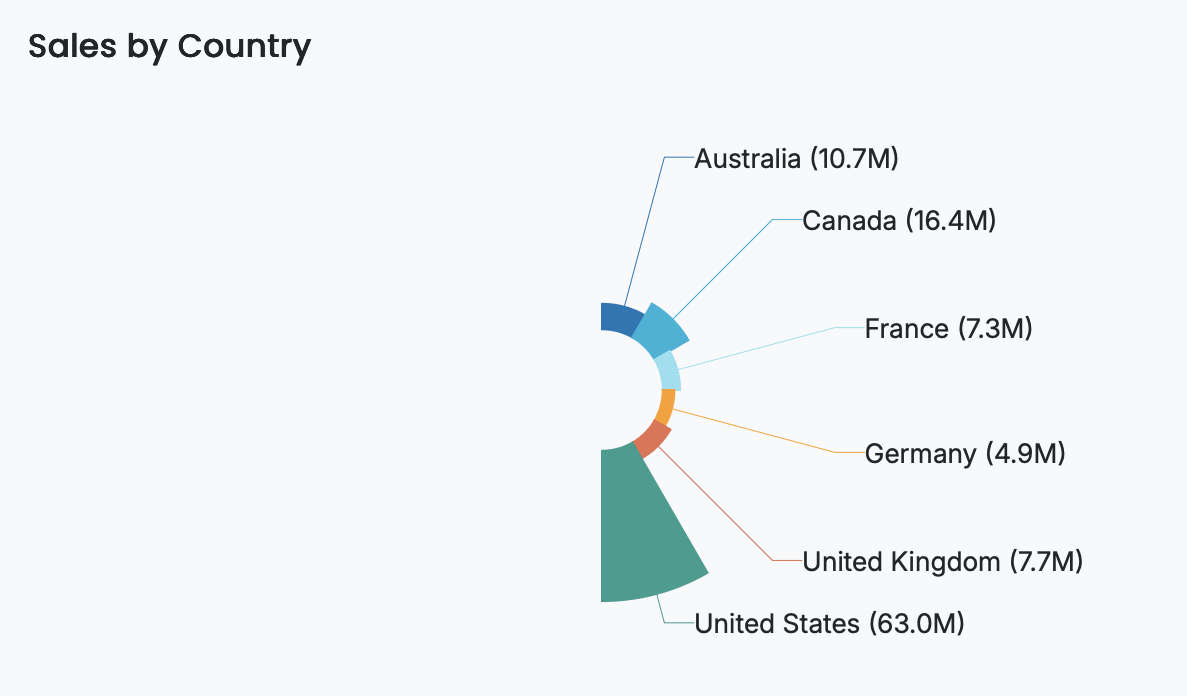

Here is an example of a half-circle donut chart with the sweep set to 180.

Radius

Determines the size of the donut chart measured from the center outward.

The radius range is from 50 to 75, where 50 represents the inner radius and 75 represents the outer radius.

Setting the inner radius to 0 creates a pie chart by removing the hollow center.

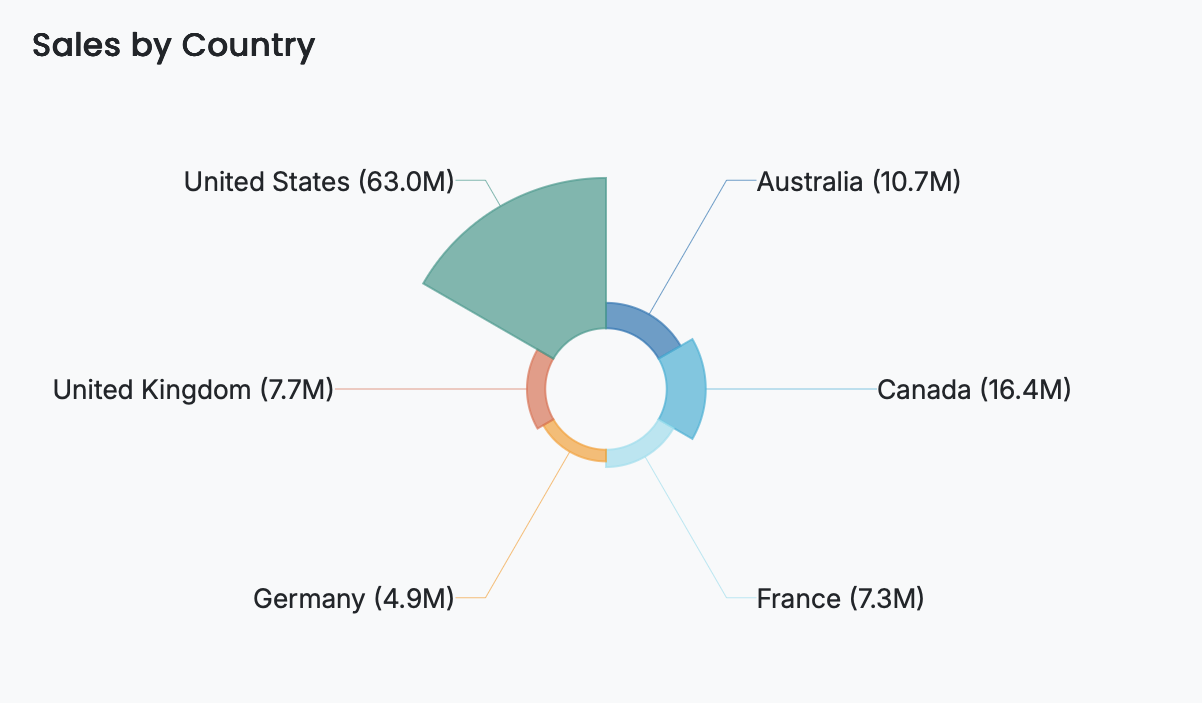

Here is an example of a donut chart with an inner radius set to 45.

Corner Radius

Rounds the outer edges of each pie slice.

The default value is 0, which produces sharp slice edges.

Increasing the corner radius softens slice boundaries, resulting in a smoother and more rounded appearance.

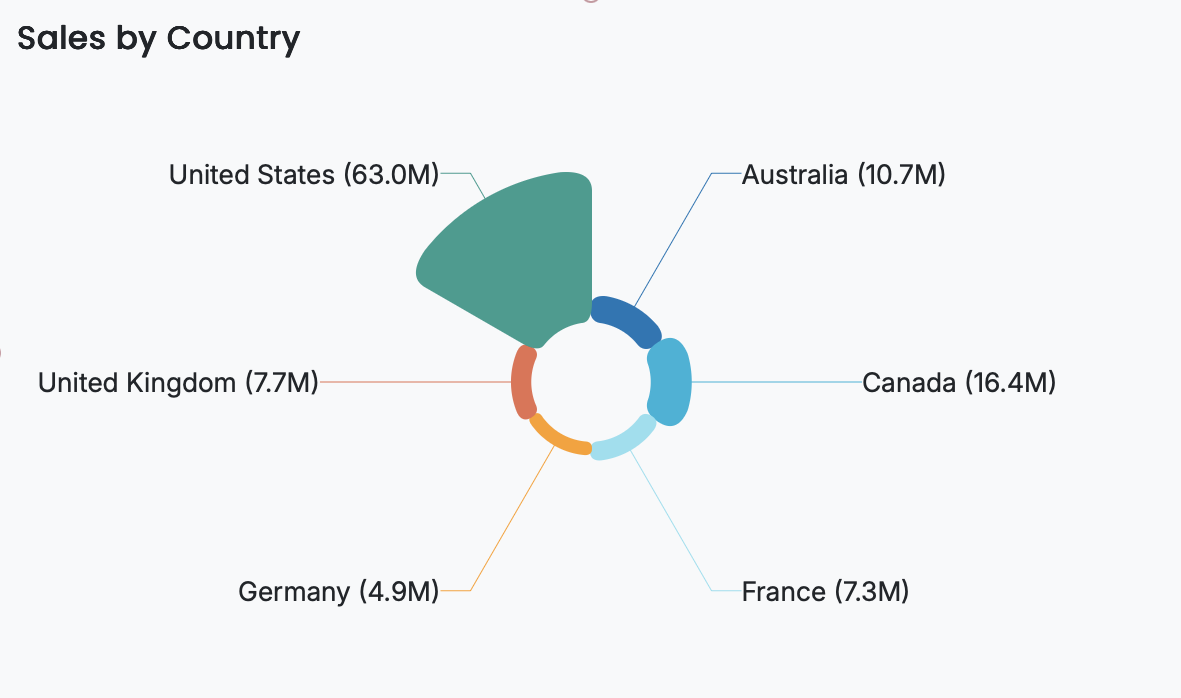

Here is an example where the corner radius is set to 10.

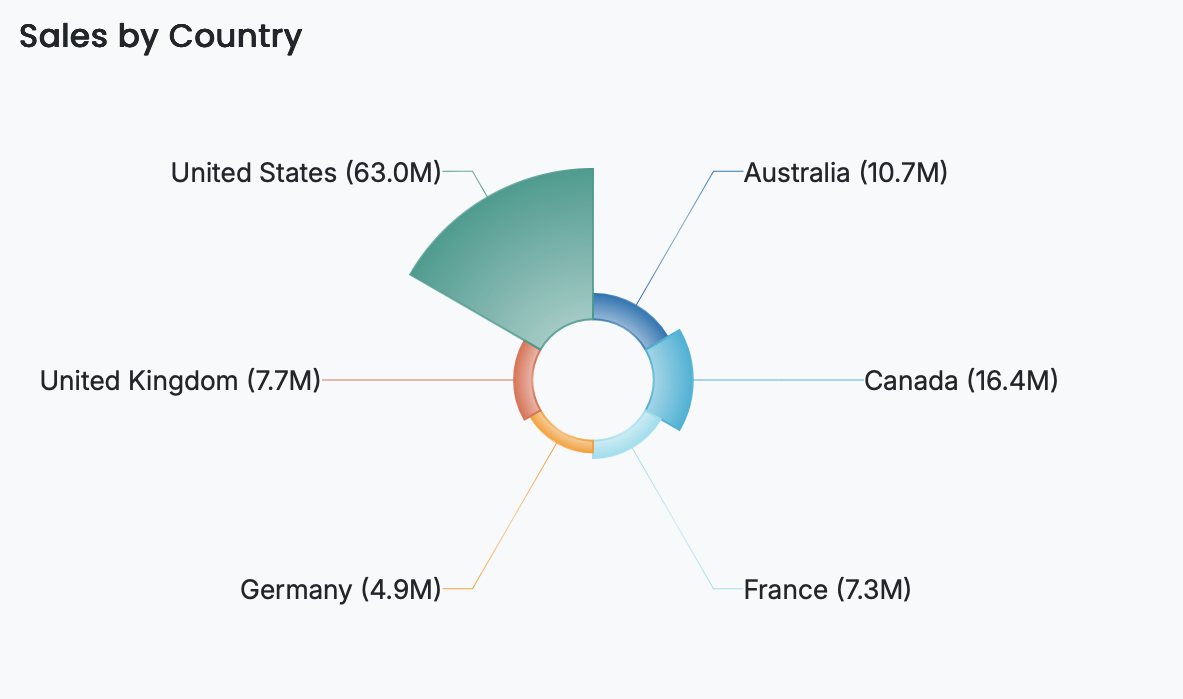

Auto Gradient

Applies a gradient fill to column colors.

• On: Wyn auto-generates gradient effects.

• Off: columns use flat colors.

See Also

• Animation

• Data Visualization

• Interaction

• Title

• Data Labels

• Tooltip

• Axis (Category)

• Value Axis

• Legend

• Series

• Trellis

• Drill Down

• Special Data

• No Data Content

• Layout

• Appearance

Property Reference

Chart Style

Maintain Color Assignments: Toggle this to True if you want to manually assign specific colors to individual data values instead of using automatic color mapping.

Palette: Lets you customize the color scheme applied to the chart. Use the dropdown to choose from available color palettes based on the current Theme.

Graph Opacity: Controls the transparency of the chart. Set to 0% for fully transparent or 100% for fully opaque.

Start Angle: Defines the position where the first slice of the pie chart begins. The default value is 0, meaning the first slice starts at the top and proceeds clockwise.

Sweep: Controls how much of the circle the rose chart covers, with a default of 360 for a full circle. You can reduce this value to create a partial or semi-circular chart.

Radius: Determines the size of the chart from the center outward. The default range is from 20 to 75, where 20 is the inner radius and 75 is the outer radius. Setting the inner radius to a value greater than 0 creates a donut-style appearance.

Corner Radius: Rounds the outer edges of each slice; by default, it is 0, resulting in sharp edges, but increasing it will soften the slice borders.

Auto Gradient: Enables a gradient color effect on each slice when set to True, adding visual depth to the chart.

Data Visualization

• Top N Grouping – When enabled, limits the displayed data to the top N items based on a chosen measure (e.g., top 10 categories by sales). This is useful for focusing on the most significant data points.

  • Additional Option: When this setting is turned on, a Show property appears, allowing you to enter a numeric value for N (the number of top items to display).

  • Default: Off.

• Include All Dimensions – When enabled, ensures that all available dimension values are included in the visualization, even if they have no corresponding measure values. This can help maintain consistent category representation across views. Default: Off.

Data Labels

• Show Data Label: Toggle this on to enable data labels on the chart.

• Display Pattern: Choose a label structure from:

  • Series (Value/Percentage)

  • Series Value/Percentage

  Note: This controls the format, but not which elements are shown.

• Toggle Visibility for Each Element:

  • Value – must be set to true to display values.

  • Value As Percentage – toggle on to display the value as a percentage.

  • Decimal Places – set the number of decimal places on the percentage value.

• Series Name: Set to True to show the series name.

• Location: Choose between On Slice or Around.

• Line Width: Set the line width of the data label.

• Connecting Line Color: Set the color of the connecting line on the data label.

• Display Mode: Determines how data labels are displayed on the chart. You can choose between:

  • Auto: The chart automatically decides which data labels to show, based on available space.

  • All: Forces all data labels to be displayed, regardless of space constraints.

• Same Color As Legend: A toggle option that controls the color of data labels.

  • On/True: Data labels adopt the same color as their corresponding bars in the chart, matching the legend.

  • Off/False: Data labels use the default color, independent of the bar colors.

• Data Label Font Setting:

  • Font family, size (pt), color, weight, and italic styling.

• Show Shape: Toggle on to add a background shape to the label.

  • Upload a Shape Image.

  • Adjust placement and size with:

    • Shape X Center

    • Shape Y Center

    • Shape X Scale

    • Shape Y Scale

Tooltip

Tooltip Mode – Determines how tooltips are displayed when hovering over the chart:

• None – Disables tooltips.

• Data Point (default) – Shows a tooltip for the specific data point under the pointer.

• Category – Shows a tooltip for all data points that share the same category value.

Legend

By default, the Show Legend toggle is set to False. To include a title for the legend, enable the Title toggle as well. Once enabled, the legend automatically takes the name of the data attribute it is bound to. To change that, you can enter a title in Custom Title. You can customize the title by setting the Font Family (e.g., Arial), Font Size, Text Color Font Weight (such as bold), and applying Italic styling if desired. The Position property allows you to position the legend title to the left, center, or right of the chart area. The legend is set to Auto Size by default. To manually define the legend size, disable this setting by setting Auto Size to False. You can also control the Horizontal and Vertical Alignment Auto by default but can be changed using dropdown options. To allow legend labels to wrap across lines, set the Wrap Legend option to True. Click Action property defines how interactions with items in the chart legend affect the data displayed in the rose chart.

You can choose from two options in the dropdown menu:

• Select/Unselect

  When this option is selected, clicking a legend item highlights the corresponding data attribute on the chart and dims the others. This allows you to focus on a single series or category at a time. Clicking the legend item again restores the full view of all data attributes.

• Hide/Show

  When this option is selected, clicking a legend item temporarily hides the corresponding data attribute from the chart. Clicking it again redisplays the hidden data attribute. This is useful for quickly including or excluding specific data attributes without affecting the rest of the chart configuration.

Trellis

Use the Trellis properties when you create a Trellis Chart. This can be done in the Data Binding Tab. Drag and drop the attribute to Trellis. You can read the Trellis Column Chart article for more information.

You can set the Padding around the Trellis Chart to control the spacing between the chart content and its edges. You can also define a Trellis Border Color to outline each panel of the trellis. Additionally, the Trellis Font Settings allow you to customize the font family, size, color, weight, and style of the text used in the trellis layout.

Drill Down Setting

• Position – Determines where the drill-down navigation bar is displayed on the chart. Options include:

  • Top left (default)

  • Top center

  • Top right

  • Bottom left

  • Bottom center

  • Bottom right

• Home Name – Specifies the text label for the top-level view in the drill-down hierarchy. The default label is Home, but you can change it to something more descriptive, such as All Regions or Main Category.

• Font – Configures the font family, size, color, weight (e.g., bold), and style (e.g., italic) for all drill-down navigation text.

• Current Level Font Color – Sets the color for the label of the currently active drill-down level, helping it stand out from other levels.

• Other Levels Font Color – Sets the color for labels representing all non-active drill-down levels, allowing users to visually distinguish between the active and inactive levels in the navigation path.
