Column E-Chart

Column E-Charts play a pivotal role in business intelligence applications by simplifying data visualization and analysis. Column E-charts are highly effective in presenting data in a clear and concise manner, making it easier for users to derive meaningful insights.

Column E-charts provide various functionalities like intuitive data representation, aggregation and grouping, drill-down capabilities, customization, real-time data analysis, interactive visualization, and exporting and sharing.

In this help article, you will find the following information,

Create a Column e-Chart

To create a Column e-chart, navigate to the Resource or Document Portal and follow the below instructions,

Click the + Create button and then click the Create Dashboard option.
Select the Blank Dashboard option or select a template and click the Create button.
Navigate to the Custom Visualization tab from the Designer Toolbox and drag and drop the Column Chart(Echarts) onto the design area.

Bind Dataset To Chart Scenario

Select a dataset from the Choose Data dropdown in the Data Binding panel.

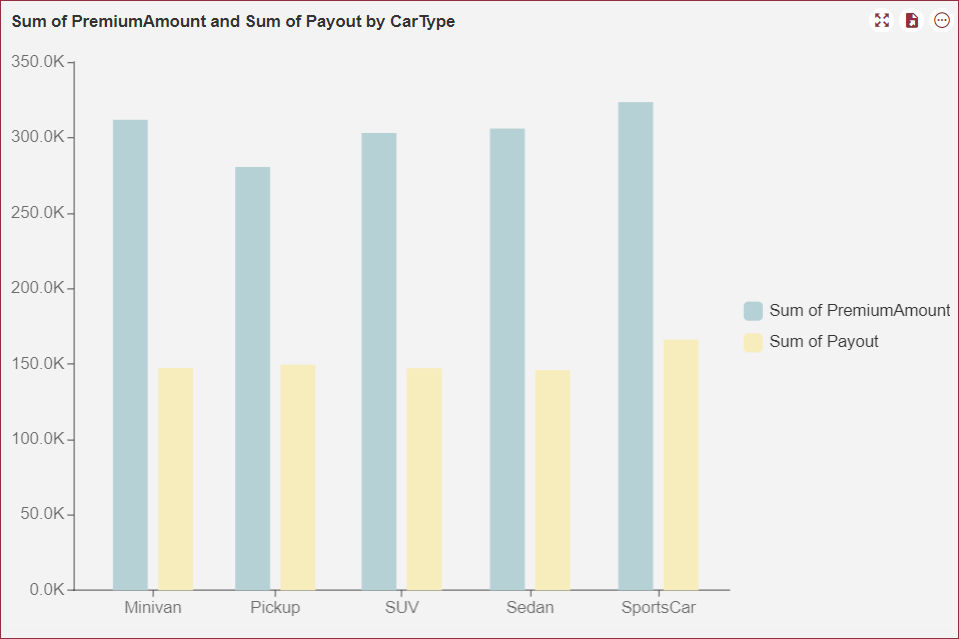

Now, drag and drop the applicable dataset fields in the Values, Axis (Category), Legend (Series), and Tooltip data containers. You can also select a drill-down mode (Default, Pre-set Targets, or Pre-set Path) from the Mode dropdown under the Drill Down option. See the Drill Down help article for more information on drilling down in Wyn Enterprise.

Format Data Attributes

You can perform various operations in a Line e-Chart to format the data attributes and control data display. Use the settings icon in the Data Field containers to format data attributes. The following operations are included in the Line e-Chart scenario;

Aggregation Method: Use the Aggregation Method option to display a summarized value by aggregating multiple values of a data attribute. Aggregation Method supports Sum, Average, Max, Min, Count, and Distinct Count methods. See the Aggregation Method help article for more information.
Quick Functions: Use the Quick Functions option to highlight key indicators in your chart scenario by applying powerful calculations on measures. Quick Functions in Wyn Enterprise support Date Based Functions, Ranking Calculation, Percentile Calculation, Running Calculation, Moving Calculation, and Original Value. See the Quick Functions help article for more information.
Filter: Use the Filter option to display relevant data in your chart scenario. See the Filter Data help article for more information.
Rename: Use the Rename option to change the name of a data attribute to make it comprehensible and meaningful. See the Rename a Data Attribute help article for more information.
Remove: Use the Remove option to remove a data attribute from the chart scenario.
Tooltip Setting: Use the tooltip setting to customize the tooltips. You can customize the background image, color, and font style, add new data fields, modify the data fields, and modify expressions for data binding.

Analyze Data

Wyn dashboard scenarios support rich data analysis and exploration capabilities to help you analyze massive amounts of information and make data-driven decisions. The following analysis operations are available in the Action Bar corresponding to each scenario in the designer;

Filter: To filter out relevant data in your chart scenario. See the Filter Data help article, for information on using the filter options in a dashboard scenario.
Sort: To arrange the chart data in a more meaningful order. See the Sort help article for information on using the sort options in a dashboard scenario.
Conditional Visualization: To filter, compare, and rant the data in a dashboard scenario. See the Conditional Visualization help article for information on using various visualization options.
Data Binding: To modify the data binding of the dashboard scenario with new attributes use the Data Binding option. See the Modify Data Binding help article for more information.
Reference Line: To add a static line as a reference line on the chart use the Reference Line option. See the Reference Line help article for information on using various formatting options.

Customize Appearance

Navigate to the Inspector Panel and modify the settings as per your requirements. The properties of the Column E-Chart are listed and described below.

CHART STYLE

Property	Description
Maintain Color Assignments	To change the color assignments of the column bars, turn the flag to True and change the color of the data items from the Assign Colors popup using the Color Assignment property. To use the default color palettes for the column bars, turn the flag to False and select a default color palette from the Palette property. By default, the value of the Main Color Assignment property is set as False.
Color Assignment	Color Assignment property is visible only when the Maintain Color Assignment property is set to True. This property is used to manage the colors of the data items of the column bars.
Palette	Palette property is visible only when the Maintain Color Assignment property is set to False. A palette is used to select the group of colors for the column bars.
Graph Opacity	Use the Graph Opacity property to set the opacity level of the e-chart. The value of the Graph Opacity property ranges from 0% to 100%.
Chart Type	Change the type of chart using the dropdown. The available option in the dropdown are Column Chart, Bar Chart, Stacked Column Chart, or Stacked Bar Chart.
Auto Gap Width	To set the gap width between the category and series values set the Auto Gap Width to False and update the Category Gap % and Series Gap % properties. The values of the Category Gap % and Series Gap % property range from 0 to 100.
Category Gap %	Category Gap % property is visible only when the Auto Gap Width property is set as False. Category Gap % property is used to define the gap percentage with the category values on the chart.
Series Gap %	Series Gap % property is visible only when the Auto Gap Width property is set as False. Series Gap % property is used to define the gap percentage with the series values on the chart.
Corner Radius	Use the Corner Radius property to set the corner radius of the column bars. Use the expand/collapse button to manage the radius of the top-left, top-right, bottom-left, and bottom-right corners of the column bars.
Auto Gradient	To set the automatic color gradient in the chart, set the Auto Gradient property to True. By default, the value of this property is set as False.
Show Mark Point	To display the minimum and maximum values of the chart, set the Show Mark Point property to True. By default, this property is set to False.
Min Mark Point	To display the minimum value point, set the Min Mark Point property to True. By default, this property is set as False.
Max Mark Point	To display the maximum value point, set the Max Mark Point property to True. By default, this property is set as False.
Mark Point Color	Set the color of the mark point bubble using the *Mark Point Color property.
Mark Point Font	Set the family, size, color, weight, and style of the mark point font using the Mark Point Font property.
Canvas Position	Set the Left, Right, Top, and Bottom positions of the chart canvas using the Canvas Position property.
Custom Echarts Option	Use the Custom Echarts Option to customize the chart using JavaScript code.
Custom Behavior	Use the Custom Behavior option to directly write JavaScript code and use setTimeout/setInterval/myChart (echart instance), etc., to customize the behavior of the chart, to dynamically change the chart content in real-time. Refer to section E-Charts Custom Behavior for more details.

ANIMATION

Property	Description
Entrance Animation	Select an option from the dropdown to set the animation style of the appearance of the chart scenario. After selecting an option (SlideInDown, SlideInLeft, SlideInRight, SlideInUp, SlideInDown, BackInDown, BackInLeft, or BackInRight) from the dropdown, set the delay and duration of the animation using the Delay(s) and Duration(s) properties respectively.

DATA VISUALIZATION

Property	Description
Automatic Carousel	To highlight the columns one at a time and display the tooltip, set the Automatic Carousel property to True. By default, this property is set to False.
Interval (seconds)
Include All Dimensions	To include the labels with Null values in the chart scenario, set this property to True.
Show Zoom Axis	To display the Zoom Axis on the chart scenario set the Show Zoom Axis property to True.
Zoom Axis Size	Set the size of the zoom axis ranging between 10 to 30 using the Zoom Axis Size property.
Zoom Axis Default Length	Set the default length of the zoom axis using the Zoom Axis Default Length property.
Zoom Axis Color	Select the color of the zoom axis using the Zoom Axis Color property.
Touch Zoom

DATA LABELS

Property	Description
Show Data Labels	To display data labels set the Show Data Label property to True. By default, the value of the Show Data Label property is set to False.
Display Pattern	You can add a line break (, \n()) between Category, Series, and Value, by using the Display Pattern property for the data labels. If you hide some parts of the label, like the value, series, and category, the part will be removed from the pattern, and the related connector (the prefix , \n ()) will also be removed. The dropdown list has 3 display pattern options. By default, the display pattern selected is Category, Series(Value).
Value	To disable the display of the data label values set the Value property to True. By default, the value of the Value property is set to False.
Display Unit	Select a display unit option from the dropdown. The available options are Auto, None, Thousands, Millions, Billions, and Trillions.
Series Name	To display the name of the data label series set the Series Name property to True. By default, the property is set to False.
Category Name	To display the data label category names set the Category Name property to True. By default, the property is set to False.
Location	Select the Inside or Outside option from the dropdown to display the data labels inside or outside the column bars.
Display Mode	Select an option from the dropdown to set the display mode of the data labels. The available options are Auto and All.
Data Label Font Setting	Set the font family, font size, font color, font weight, and font style of the data labels using this property.
Moveable	When the data labels are overlapped due to many data labels, you can turn on the Movable property to manually adjust the position of the data labels and save it. Set the Movable property to True, focus the component and you can drag the display position of the data label. By default, this property is set to False. By using the Custom Echarts option property under Chart Style, you can change the type of the label Line and Minimum and Maximum value. E-charts support three types of label lines: solid, dashed, and dotted.

AXIS(CATEGORY)

Property	Description
Show Axis	To hide the Category (X) Axis, set this property to False. By default, this property is set as True.
Axis Position	Select the Zero, Bottom, or Top option from the dropdown to set the position of the Category (X) Axis.
Show Axis Line	To hide the Category (X) Axis line, set this property to False. By default, this property is set as True.
Axis Line Type	Select Solid or Dashed line type for the Category (X) Axis line from the dropdown.
Axis Line Color	Set the color of the Category (X) Axis line using this property.
Axis Line Width	Set the Category (X) Axis line width using this property.
Show Grid Lines	To show the grid line of the Category (X) Axis, set this property to True. By default, this property is set as False.
Grid Line Type	Select Solid or Dashed type of grid lines for the Category (X) Axis from the dropdown.
Grid Line Color	Set the color of the grid lines of the Category (X) Axis.
Grid Line Width	Set the width of the grid lines of the Category (X) Axis
Show Split Area	To highlight the split area on the chart, set the Show Split Area property to True. By default, the property is set to False.
Odd Area Color	Select a color to highlight the odd area.
Even Area Color	Select a color to highlight the even area.
Show Tick Labels	To hide the tick labels of the Category (X) Axis, set this property to False. By default, this property is set as True.
Label Direction	Select the Horizontal, Vertical, or Diagonal option from the dropdown to set the direction of the Category (X) Axis labels.
Label Overflow Setting	Select Hide, Ellipsis, or Wrap option from the dropdown for the overflowing text of the labels.
Show Tick Marks	To hide the tick marks of the Category (X) Axis, set this property to False. By default, this property is set as True.
Show Title	To show the title of the Category (X) Axis, set this property to True. By default, this property is set as False.
Title Offset	Set the offset distance of the title from the Category Axis using this property.
Axis Font Setting	Set the font family, size, color, weight, and style of the Category (X) Axis labels using the Axis Font Setting options.

VALUE AXIS

Property	Description
Show Axis	To hide the Value (Y) Axis, set this property to False. By default, this property is set as True.
Max Value	Set the maximum value of the Value (Y) Axis labels using the Max Value property.
Min Value	Set the minimum value of the Value (Y) Axis labels using the Min Value property.
Interval	Set the interval between two labels of the Value (Y) Axis using the Interval property.
Reversed	To reverse the appearance of the chart scenario, set this property to True. By default, this property is set as False.
Axis Position	Select the Left or Right option from the dropdown to set the position of the Value (Y) Axis.
Show Axis Line	To hide the Value (Y) Axis line, set this property to False. By default, this property is set as True.
Axis Line Type	Select Solid or Dashed line type from the dropdown for the Value (Y) Axis line.
Axis Line Color	Set the color of the Value (Y) Axis line using this property.
Axis Line Width	Set the Value (Y) Axis line width using this property.
Show Grid Lines	To show the Value (Y) Axis grid line, set this property to True. By default, this property is set as False.
Grid Line Type	Select Solid or Dashed type of grid lines for the Value (Y) Axis from the dropdown.
Grid Line Color	Set the color of the grid lines of the Value (Y) Axis.
Grid Line Width	Set the width of the grid lines of the Value (Y) Axis.
Show Split Area	To highlight the split area on the chart, set the Show Split Area property to True. By default, the property is set to Flase.
Odd Area Color	Select a color to highlight the odd area.
Even Area Color	Select a color to highlight the even area.
Show Tick Labels	To hide the tick labels of the Value (Y) Axis, set this property to False. By default, this property is set as True.
Format	Set a general, number, currency, percentage, or custom format for the labels of the Value (Y) Axis.
Display Unit	Select Auto, None, Thousands, Millions, Billions, or Trillions option from the dropdown to set the display units of the Value (Y) Axis labels.
Label Direction	Select the Horizontal, Vertical, or Diagonal option from the dropdown to set the direction of the Value (Y) Axis labels.
Show Tick Marks	To hide the tick marks of the Value (Y) Axis, set this property to False. By default, this property is set as True.
Show Title	To show the title of the Value (Y) Axis, set this property to True. By default, this property is set as False.
Show unit's label
Title Offset	Set the offset distance of the title from the Value Axis using this property.
Axis Font Setting	Set the font family, size, color, weight, and style of the Value (Y) Axis labels using the Axis Font Setting options.
