Create a Scheduled Task to Run a Report

Once you create a scheduled task in Wyn Enterprise, the run result of the report is automatically generated at the specified time or interval in the chosen file format. You can share the result by sending an email to the designated email address, storing it on the system server, or keeping the result at a shared location.


In Wyn Enterprise, a scheduled task can be set to manual, one-time, or scheduled depending on your requirements. For each execution mode, there is a different set of fields that should be specified for a scheduled task to run successfully. You can also add the saved filters in the report while scheduling. Instead of defining the parameters every time, you can use preset filters to match the filters used in the report preview. For more details, please have a look at the below sections.

To Schedule a Task

This section describes how to set up a report that automatically generates on a recurring basis, like daily, weekly, monthly, or yearly.

Note: For successful task execution, make sure that the report worker service is running in the background, else the scheduled task will fail to execute. To get the status of the report worker service, navigate to the Node Management page on the Admin Portal.

  1. On the Document Portal, select the report you want to schedule.

  2. With the report selected, click the Info button on the top-right corner of the portal.

  3. In the Info panel that appears, navigate to the Tasks tab and click the + Add Task button to create a new scheduled task.


    Create a new scheduled task


  4. Enter the task description in the Details field.

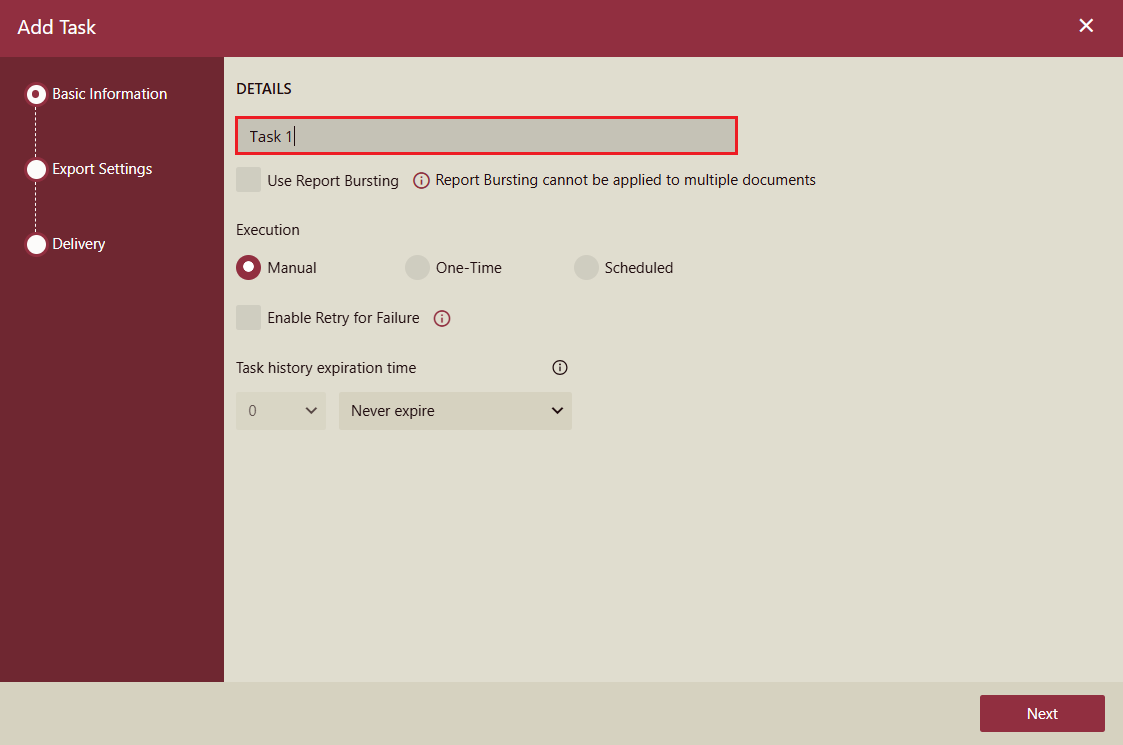

    Manual Task


  5. By default, tasks are manually scheduled in Wyn Enterprise. If the Execution field is set to One-Time, then you can specify the Start date-time and Executing Timezone as per your requirement.

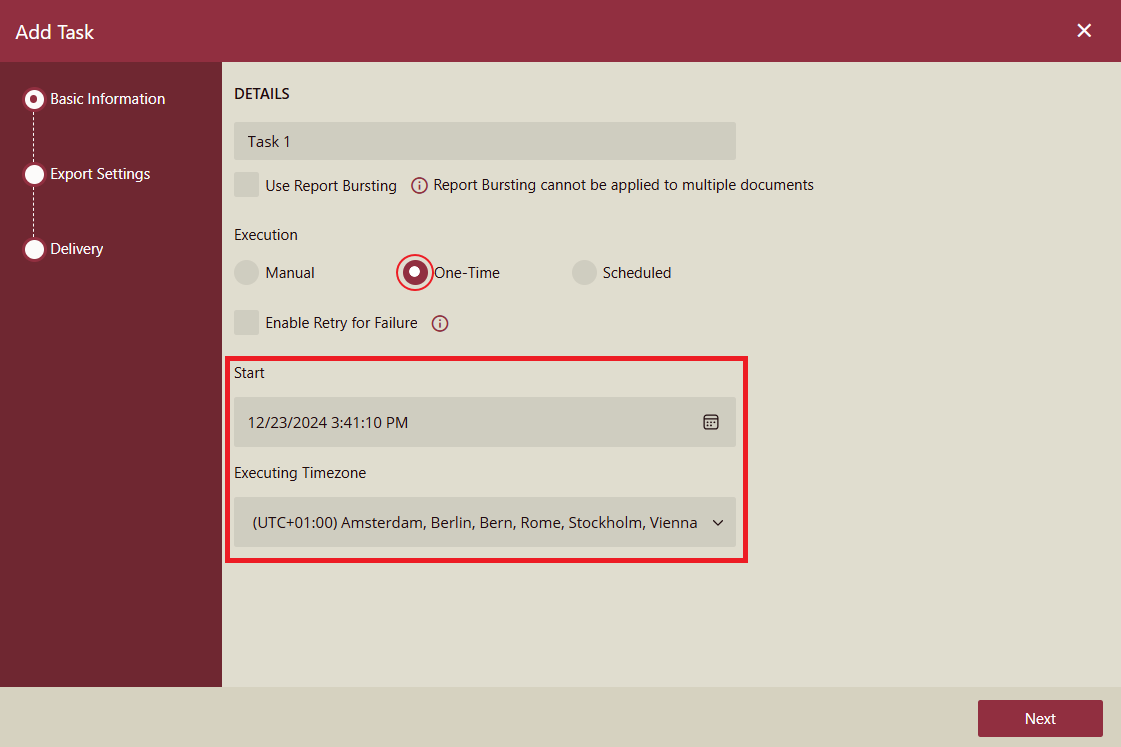

    One time task

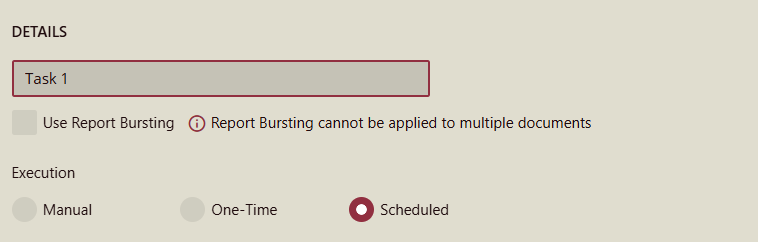

  6. To create a task that runs at fixed intervals of time, set the Execution field to 'Scheduled'.


    SAcheduled task

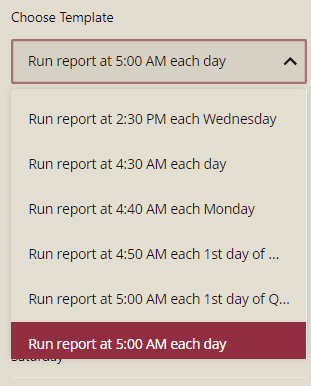

  7. From the Choose Template dropdown, select a suitable schedule template that matches your requirements. The list shows both the built-in and custom templates on the server. For more information on how to create a custom schedule template, visit this article.


    Choose a schedule template

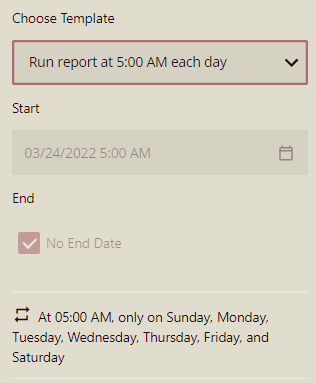

    The Start and the End fields pick the default values specified in the chosen schedule template. These default values are unchangeable.


    Start and End Dates for Schedule


    Note: If the chosen template has predefined settings for the export format or delivery method, then their corresponding fields like Export Format and Delivery Method are set to default values as specified in the template, and hence can't be modified.

    Add Execution Time Range option allows to specify time range for daily recurring tasks within which the task should only execute. To select the time range:

  • Select Daily for REPEAT and select Every hour(s) for the execution time.

  • The Add Execution Time Range check box will appear.

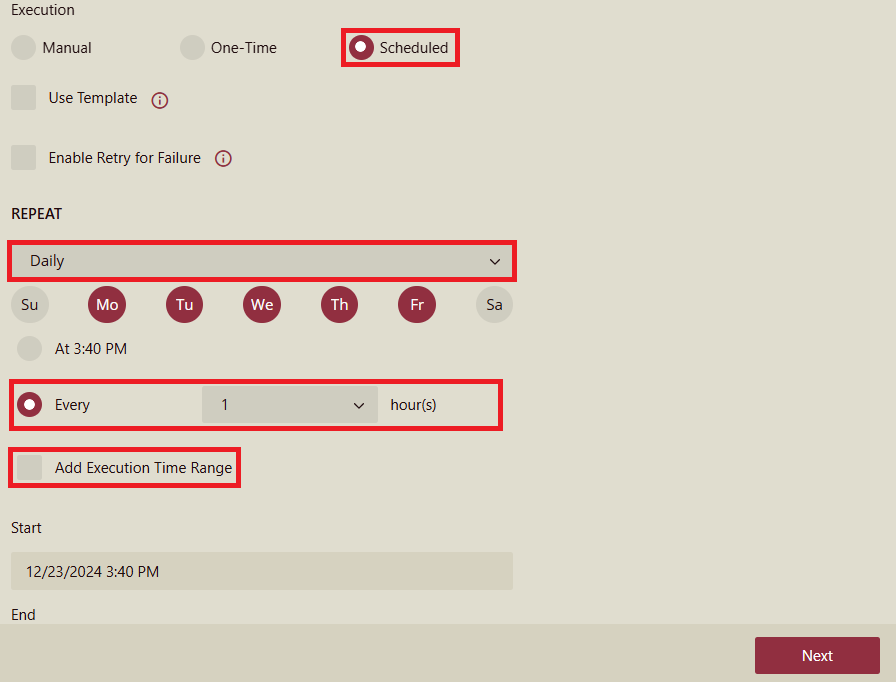

    Scheduled task Add execution time Range


  • Select Add Execution Time Range, the Start Time and End Time selectors will appear to select the time range during which the task is executed in a day.

  • The default value of Start Time is "12:00 AM".

  • The default value of End Time is "11:59 PM"

  • After adding the execution time range, the description of the execution time range will be displayed in the task description.

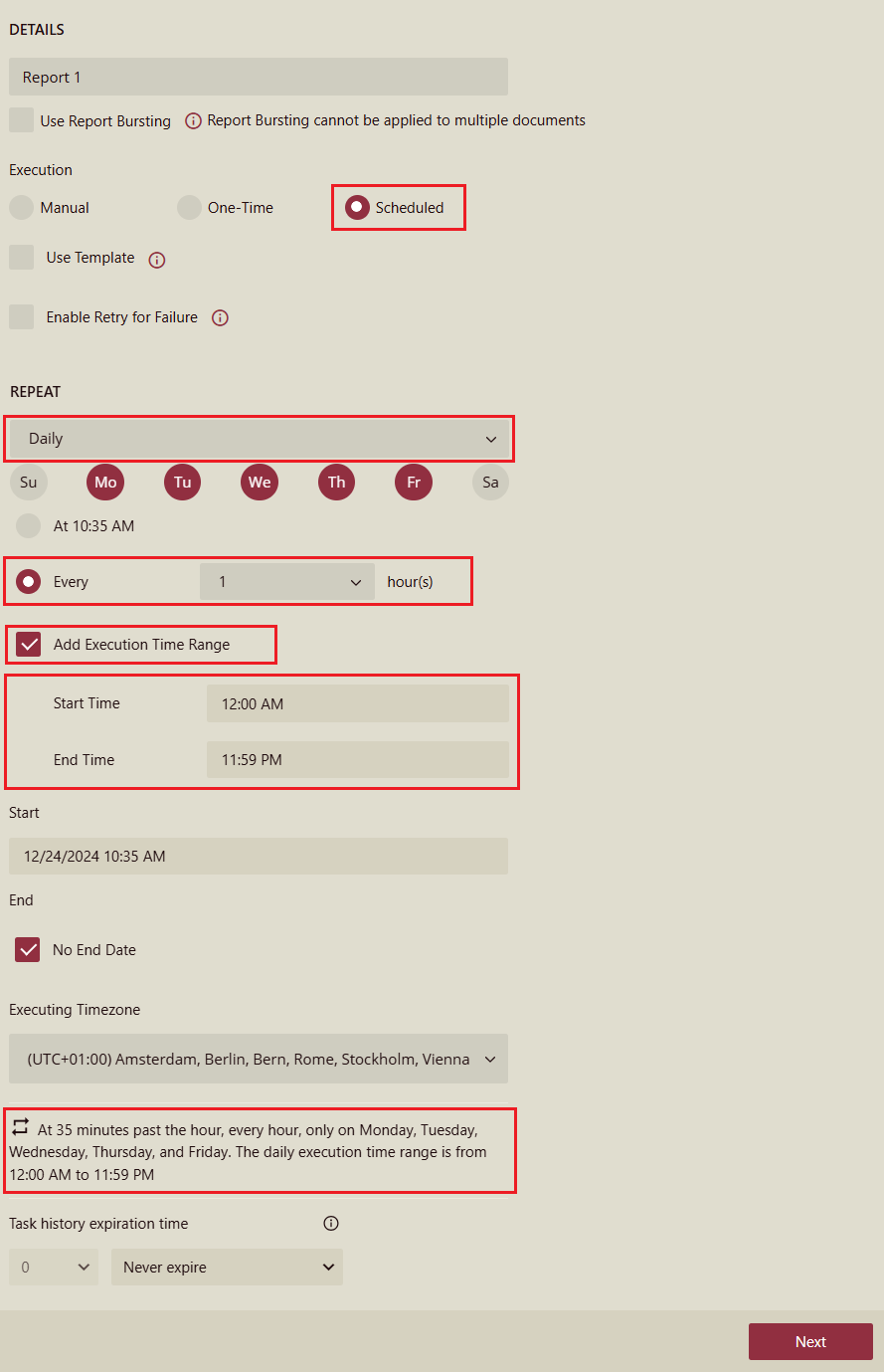

    Add Execution Time Range


    There are two ways to modify the Start Time and End Time:

    • Selection box

    • Input text

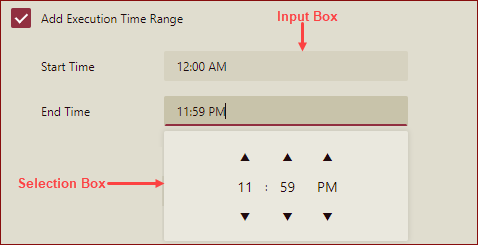

      selection and input box


      The Start Time and End Time must have a value.

    Please note the following for Add Execution Time Range:

    1. When the start time and end time are set incorrectly, the Create Task button cannot be clicked. Requirements for correct execution time range setting:

    • The start time and end time cannot be empty.

    • The time should be correct, and the format is "hh: mm AM”.

    • The start time must be earlier than the end time.

    1. If there is an Execution Time Range in the task template, when creating the task by this template, the Execution Time Range information of the template will be displayed in the description of the task. The description is the same as the description of the Execution Time Range on the daily schedule task.

    2. When creating tasks for reports, and creating schedule templates, if the user selects REPEAT as Daily, the user is allowed to add the Execution Time Range on the day.


  1. If the export format settings are not defined in the schedule template, then specify how to store or share the report result through the options available in the Export Format dropdown. The supported formats are PDF, Excel, Word, CSV, HTML, Image, JSON, TXT, XML, and Excel Data, or create custom export templates based on your requirements.

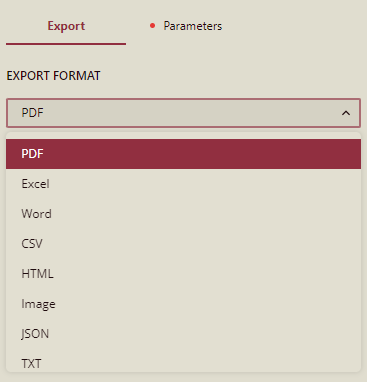

    You can check the Advanced Settings option to specify the advanced export properties for the chosen format.


    Choose an export format

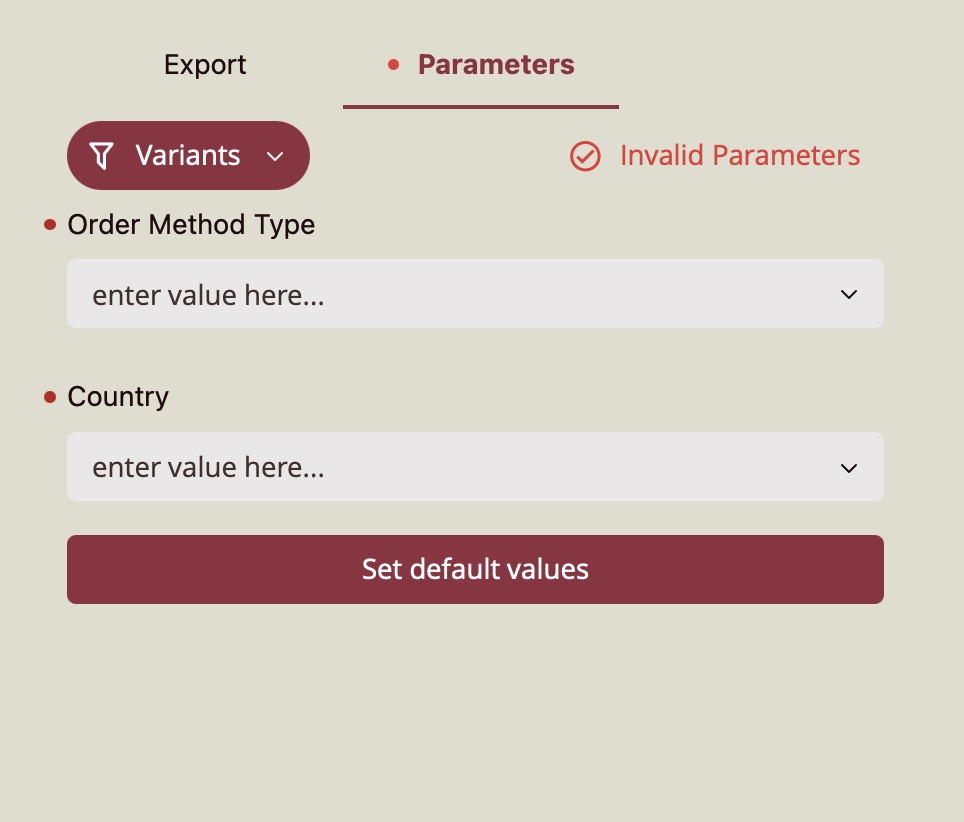

  2. In case your report contains any parameter(s) or variant(s), you need to enter valid parameter value(s) or set the report variant. Else, a message saying 'Invalid Parameters' will be displayed.


    Screenshot 2025-02-17 at 11.08.41 AM

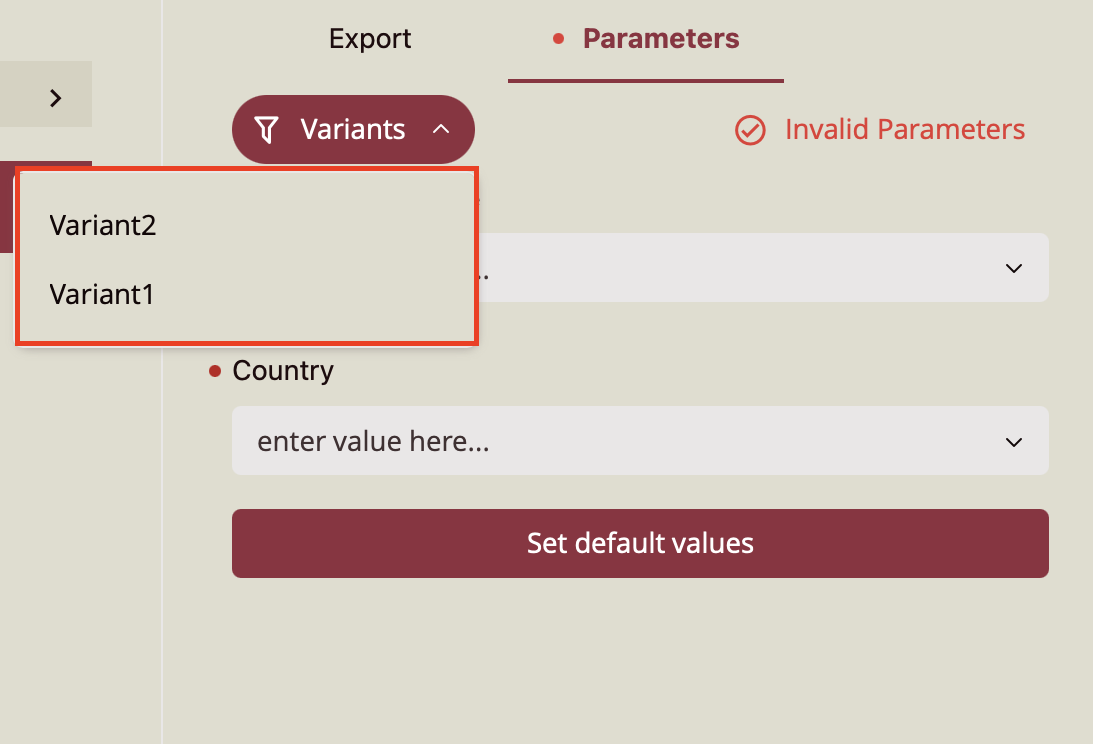

    Click on the Variants button to select your variant.


    Screenshot 2025-02-17 at 11.09.21 AM

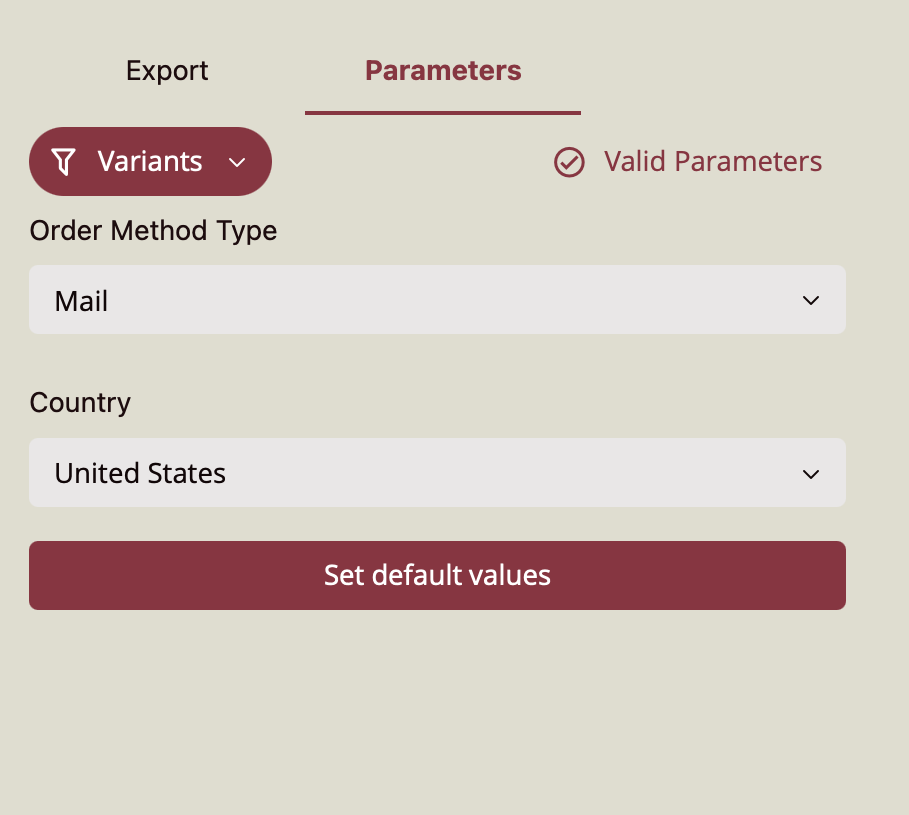

    It will auto populate the parameter values. If you want to delete the values you entered, click Set default values.


    Screenshot 2025-02-17 at 11.10.17 AM


    Note: If the filter is updated/modified, the new settings of the filter will be displayed for the subsequent scheduled task executions.

    If you have used the Date Range/DateTime Range Editors to set the parameters in the custom parameter view, then you can set the Specific Date/DateTime range and Relative Date/DateTime range for the reports while creating a scheduled task. Refer to the example below for details.

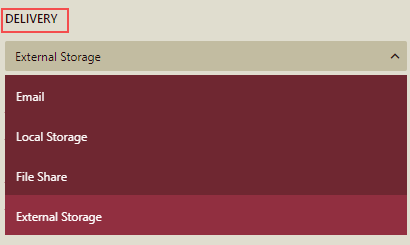

10. If the delivery method is not specified in the schedule template, then select an appropriate method like email, local storage, file share, external storage, and application message from the Delivery dropdown, and set its corresponding fields.


Choosing delivery type

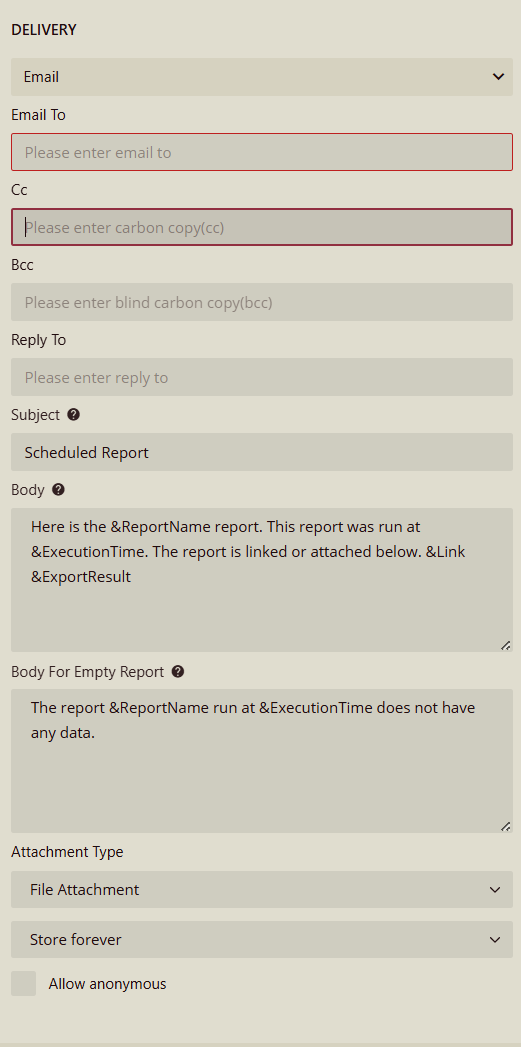

If you choose 'Email' as the delivery method, then specify the recipient email address, the carbon copy (cc), the blind carbon copy (bcc), the reply-to email address, the subject line, and the body message for the email.


Body:

In the Body, you can specify keys added to the Rendered Report Values property of the report from the Info Panel. For a report with Rendered Report Values set, you can view the keys while setting the delivery method (Email) and use them in the email body.

> Note: You can not use the rendered report values if you create a scheduler task for report bursting, multi-document, or document binder.

**Body For Empty Report:**
In the field **Body For Empty Report**, you can specify the email message that will be sent if an empty report is generated by the scheduler task. In the admin portal, if the property, **Don’t deliver the empty document** under [Schedule Settings](gcdocsite__documentlink?toc-item-id=49e74dce-ba11-4a48-9e85-47a544535ee3) is set to **True**, then the email message will not be sent even if the details are provided in the field
**Body For Empty Report**. Also, the field **Body For Empty Report** is not available if you create a scheduler task for multiple documents. You can also control how to share the result on the email by either sending it as a file attachment or providing a link in the email body to download the result.

> Note: Use comma(s) to separate multiple email addresses.

Scheduled report e-mail


Please note, that if the Administrator sets the Hide Attachment Type Options for Email Delivery Tasks

property to True in the Admin portal, then while creating the scheduled task the Attachment Type options for delivery type as Email will not be displayed and it will use the default Attachment Type value. The default Attachment Type values are as below:

  • When not using the Schedule Template: The default Attachment Type is File Attachment and for Multiple Doc (Doc Binder) also, the default Attachment Type is File Attachment.

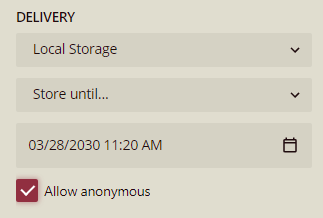

If you choose 'Local Storage' as the delivery method, then specify how to store the result on the system server - permanently, until a specific date, or once the defined period expires.


Specifying settings for the email delivery method

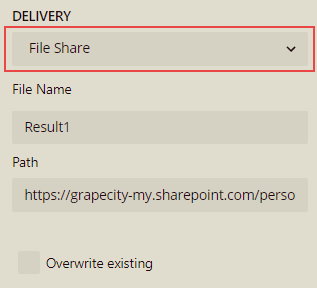

If you choose 'File Share' as the delivery method, then specify the file name and the shared location for storing the result.


Specifying settings for the email delivery method

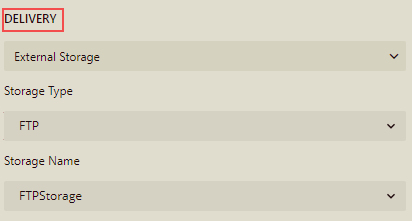

If you choose 'External Storage' as the delivery method, then specify the storage type and the storage name for storing the result.


Specify settings for the external storage method

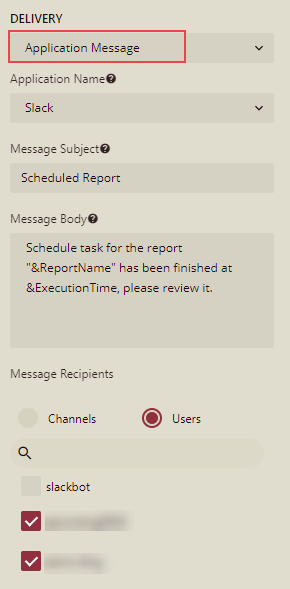

If you choose 'Application Message' as the delivery method, then specify the application name, and the subject, body, and recipients for the message. You can also specify how to share the result in the application message, either in the form of an attachment link or a download link.


Specify settings for the application message method

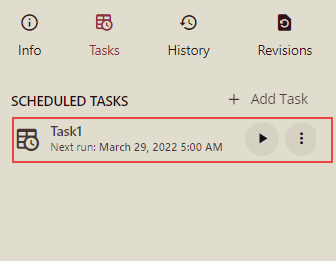

10. Click the OK button to save the settings. Note that the newly created task is listed under the Scheduled Tasks section.


List of scheduled tasks

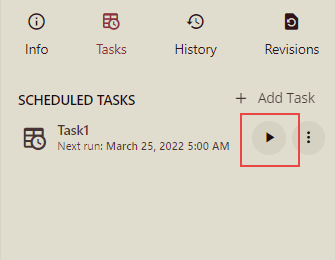

11. Click the Run Task button to execute the scheduled task manually out of the recurring iteration whenever you want, or to check whether a scheduled task runs correctly with the applied settings.


Run Task Button

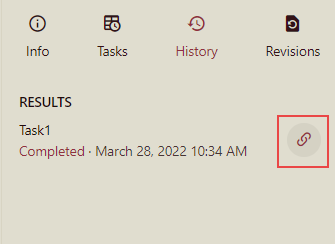

From the Task History tab, you can check whether the scheduled task is completed or failed. If the scheduled task completes its execution, click the Download link to store the report result on your system.


Run Task Button

Example – Setting the Relative Date range when the Date Range editor is used to set the parameters.

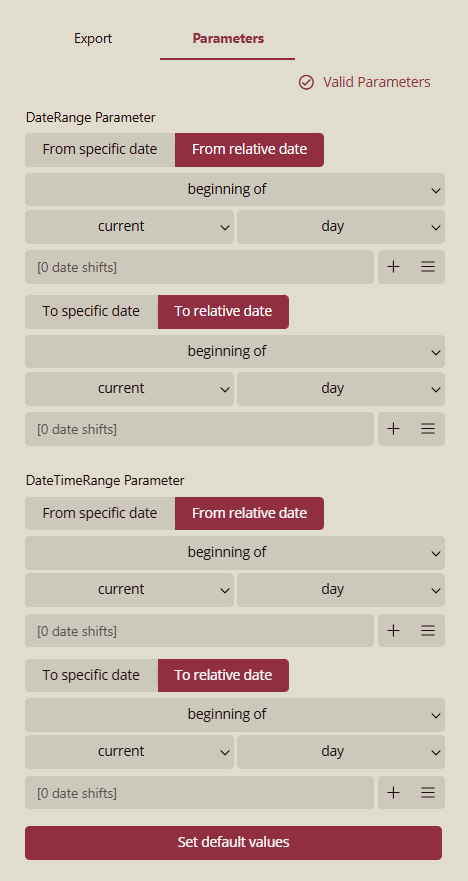

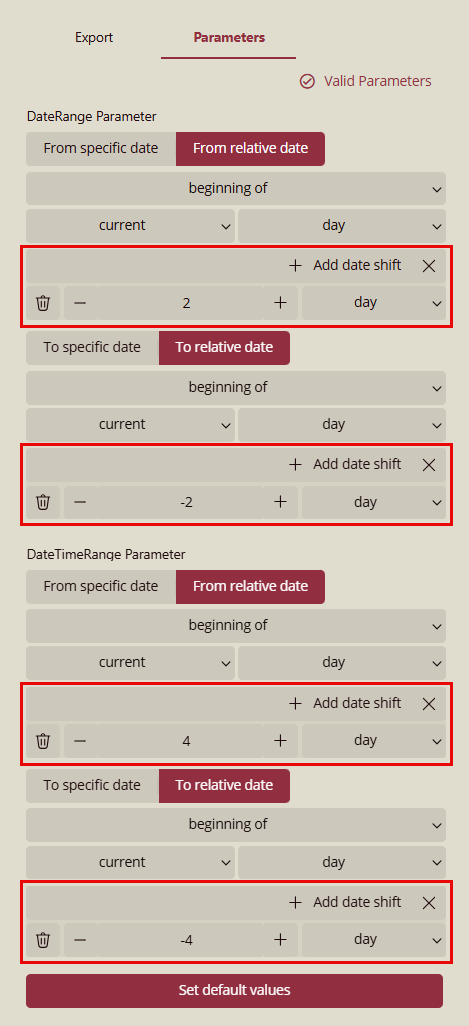

In this example, we have used the Date Range editor to set the parameters. On the Add Task screen, we have selected the From relative date and To relative date as shown below.


AddTask-DateRange-Example

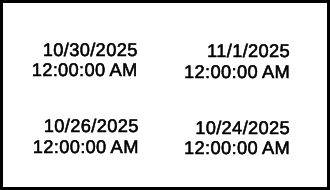

Once the task is added, you can run the task and view the result. The data will be displayed as per the relative date range set while creating the scheduled task.


ScheduleTask-DateRange-Example-Result

To Manage a Scheduled Task

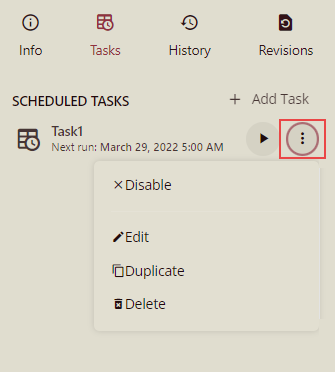

To manage a scheduled task, click the Actions button Actions Button in the Tasks tab. You can use this button to disable, edit, duplicate, or delete a scheduled task.


Modifying the scheduled task

  • Disable - Deactivates all the future scheduled executions for that task. You can resume the task execution once you enable the scheduled task by clicking the Actions button.

  • Edit - Enables you to modify the existing information for that task like its name, execution type, timings, export format, and so on.

  • Duplicate - Creates a new task with all the settings defined the same as in the originally scheduled task. This way, you can reuse the settings and save your time and effort in re-creating a scheduled task from scratch.

  • Delete - Discards the scheduled task. Note that once you delete a scheduled task, it is gone forever.


Task Execution Modes

The below section describes the fields available for the different task execution modes supported in Wyn Enterprise - manual, one-time, and scheduled.

Note: MS Teams does not support deployment on public networks due to multi-factor authentication. However, you can use email to send notifications to channels.

Manual Task Execution Mode

For the manual execution mode, you need to specify the following fields in the task dialog.

Property

Description

Details

Enter a description for the task.

Execution

Choose the execution mode for the task. In this case, set it to 'Manual'.

Export Format

Specify in what format you want to share or store the result. The supported formats are PDF, Excel, Word, CSV, HTML, Image, JSON, TXT, XML, and Excel Data. You can also create a customized export template based on your requirements. For more information, see the Export Templates article.

After selecting the export format, you can check the Advanced Settings option to define the advanced export properties for the chosen file format.

Parameters/Filters

Input valid parameter value(s) for the report if any. In case there are any saved filter(s), you can select the filter(s). If there are no saved filters, then the Filter option is not displayed. Refer to Preview a Report for saving the filters.

Delivery

Select the delivery method for sharing the report result. The supported delivery methods are email, local storage, file share, external storage, and application messages.

Email - Specify the recipient's email address, the carbon copy (cc), the blind carbon copy (bcc), the reply to email address where the recipient can respond, the subject line, and the body message for the email. You can also control how to share the result on the email by either sending it as a file attachment or providing a link in the email body to download the result.

If the export format for the report is set to 'Image' or 'HTML', you can also insert the result into the email body.

Local Storage - In this method, the result is stored on the system server permanently, until a specific date, or once the defined period expires.

File Share - Input the file name and shared location for the result. You can check the Overwrite Existing option to replace the previous report result with the latest one.

If you set the delivery method to 'Email' or 'Local Storage', you can choose whether to give access to any user (including non-Wyn Enterprise users) for viewing or downloading the report result through the Allow Anonymous option.

External Storage - In this method, you can select the storage type and name of the storage to send the result to a target location.

Only users of the selected roles and organizations for which the permissions are applied by the Admin on storage configuration can have access to the created external storage.

Application Message - In this method, the result is shared by sending a message notification to Slack or MS Teams application. Enter the message details including the subject, body, and recipients (channels or users) into the respective fields. Specify how to share the result in the application message, as an attachment link or a download link.

This method is only available if the admin user has enabled the notifications on the Admin Portal for either Slack or MS Teams, or both.

One-Time Task Execution Mode

For the one-time execution mode, you need to specify the following fields in the task dialog.

Property

Description

Details

Enter a description for the task.

Execution

Choose the execution mode for the task. In this case, set it to 'One-Time'.

Start

Set the start date and time for the task. The start time can't be set to any time less than 5 minutes from the current time.

Export Format

Specify in what format you want to share or store the result. The supported formats are PDF, Excel, Word, CSV, HTML, Image, JSON, TXT, XML, and Excel Data, or create customized export templates based on your requirements. See this article for more information on export templates.

Check the Advanced Settings option to define advanced export properties for the chosen file format.

Parameters/Filters

Input valid parameter value(s) for the report if any. In case there are any saved filter(s), you can select the filter(s). If there are no saved filters, then the Filter option is not displayed. Refer to Preview a Report for saving the filters.

Delivery

Select the delivery method for sharing the report result. The supported delivery methods are email, local storage, file share, external storage, and application messages.

Email - Specify the recipient's email address, the carbon copy (cc), the blind copy (bcc), the reply-to email address where the recipient can respond, the subject line, and the body message for the email. You can also control how to share the result on the email by either sending it as a file attachment or providing a link in the email body to download the result.

If the export format for the report is set to 'Image' or 'HTML', you can also insert the result into the email body.

Local Storage - In this method, the result is stored on the system server permanently, until a specific date, or once the defined period expires.

File Share - Input the file name and shared location for the result. You can check the Overwrite Existing option to replace the previous report result with the latest one.

If you set the delivery method to 'Email' or 'Local Storage', you can choose whether to give access to any user (including non-Wyn Enterprise users) for viewing or downloading the report result through the Allow Anonymous option.

External Storage - In this method, you can select the storage type and name of the storage to send the result to a target location.

Only users of the selected roles and organizations for which the permissions are applied by the Admin on storage configuration, can have access to the created external storage.

Application Message - In this method, the result is shared by sending a message notification to Slack or MS Teams application. Enter the message details including the subject, body, and recipients (channels or users) into the respective fields. Specify how to share the result in the application message, as an attachment link or a download link.

This method is only available if the admin user has enabled the notifications on the Admin Portal for either Slack or MS Teams, or both.

Scheduled Task Execution Mode

For the scheduled execution mode, you need to specify the following fields in the task dialog.

Property

Description

Details

Enter a description for the task.

Execution

Choose the execution mode for the task. In this case, set it to 'Scheduled'.

Choose Template

Select a schedule template for the task. A schedule template is used to define the recurring interval at which to run a report, the delivery method, and the export format. See this article for more information on schedule templates.

Export Format

Specify in what format you want to share or store the result. The supported formats are PDF, Excel, Word, CSV, HTML, Image, JSON, TXT, XML, and Excel Data, or create customized export templates based on your requirements. See this article for more information on export templates.

Check the Advanced Settings option to define advanced export properties for the chosen file format.

Parameters/Filters

Input valid parameter value(s) for the report if any. In case there are any saved filter(s), you can select the filter(s). If there are no saved filters, then the Filter option is not displayed. Refer to the Preview Report for saving the filters.

Delivery

Select the delivery method for sharing the report result. The supported delivery methods are email, local storage, file share, external storage, and application messages.

Email - Specify the recipient's email address, the carbon copy (cc), the blind carbon copy (bcc), the reply-to email address where the recipient can respond, the subject line, and the body message for the email. You can also control how to share the result on the email by either sending it as a file attachment or providing a link in the email body to download the result.

If the export format for the report is set to 'Image' or 'HTML', you can also insert the result into the email body.

Local Storage - In this method, the result is stored on the system server permanently, until a specific date, or once the defined period expires.

File Share - Input the file name and shared location for the result. You can check the Overwrite Existing option to replace the previous report result with the latest one.

If you set the delivery method to 'Email' or 'Local Storage', you can choose whether to give access to any user (including non-Wyn Enterprise users) for viewing or downloading the report result through the Allow Anonymous option. •

External Storage - In this method, you can select the storage type and name of the storage to send the result to a target location.

Only users of the selected roles and organizations for which the permissions are applied by the Admin on storage configuration, can have access to the created external storage.

Application Message - In this method, the result is shared by sending a message notification to Slack or MS Teams application. Enter the message details including the subject, body, and recipients (channels or users) into the respective fields. Specify how to share the result in the application message, as an attachment link or a download link.

This method is only available if the admin user has enabled the notifications on the Admin Portal for either Slack or MS Teams, or both.
