Common

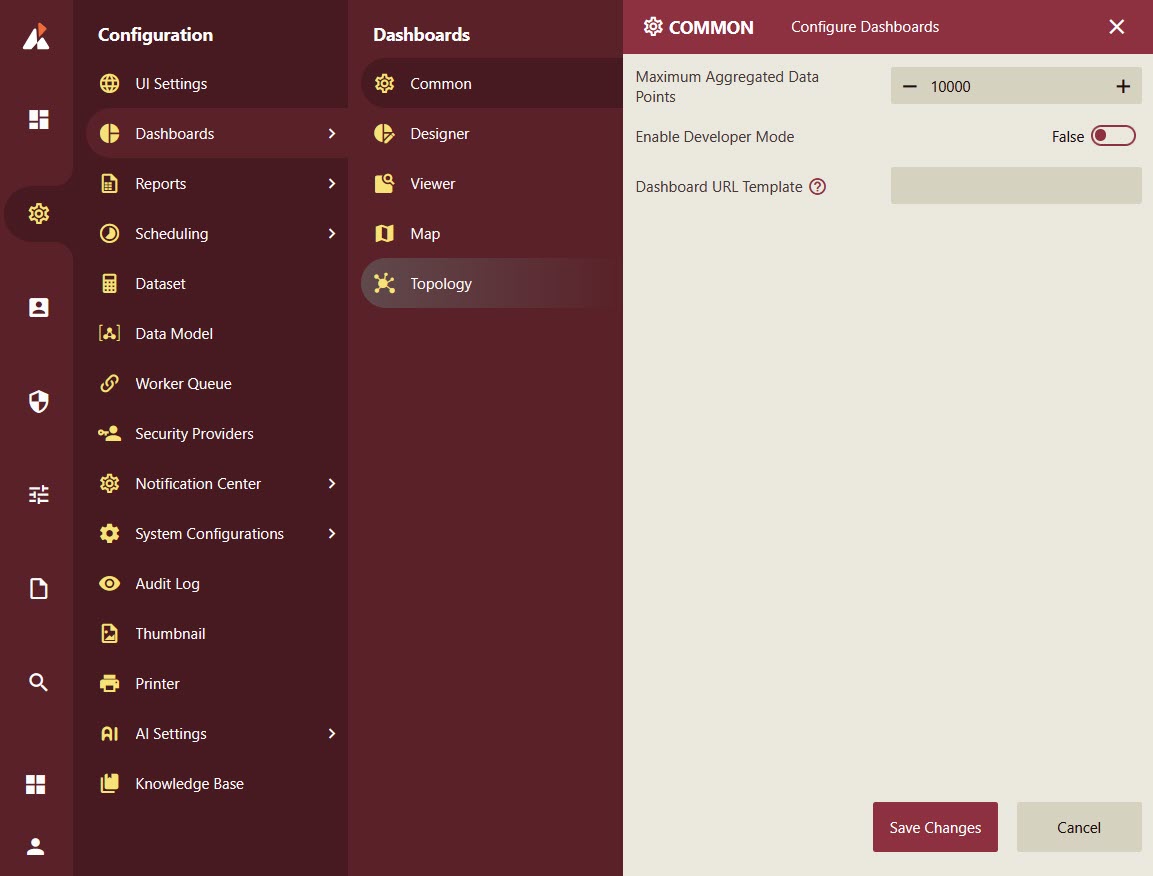

The common dashboard settings let you configure the maximum aggregated data points, enable the developer mode in the dashboard designer, allow certified custom visuals to run in an iFrame or Div, and generate custom dashboard URLs for data monitoring. To set the common dashboard settings, navigate to Admin Portal > Configuration > Dashboard > Common.

Common Dashboard Settings

This section outlines the configurable settings available for dashboards. These settings help manage data limits and enable developer tools for advanced customization.

Maximum Aggregated Data Points

• Description: Controls the maximum number of data points that the dashboard backend can aggregate.

• Default Value: 10,000

• Minimum Value: 1

• Purpose: Helps optimize performance when handling large datasets.

Enable Developer Mode

• Description: Toggles the visibility of Developer Tools in the dashboard designer.

• Purpose: Allows developers to debug and test custom visualization files within the dashboard environment.

Dashboard URL Template

• Description: Defines the template used to generate dashboard URLs for data monitoring notifications.

• Purpose:

  • Reference organization context using #{orgContextName}.

  • Reference user context using @{userContextName}.

  • Reference dashboard ID using ${dashboardId}.
