Common Properties
All notebook scenarios share a set of common property groups. These properties control positioning, appearance, handling of special data conditions, and interactivity.

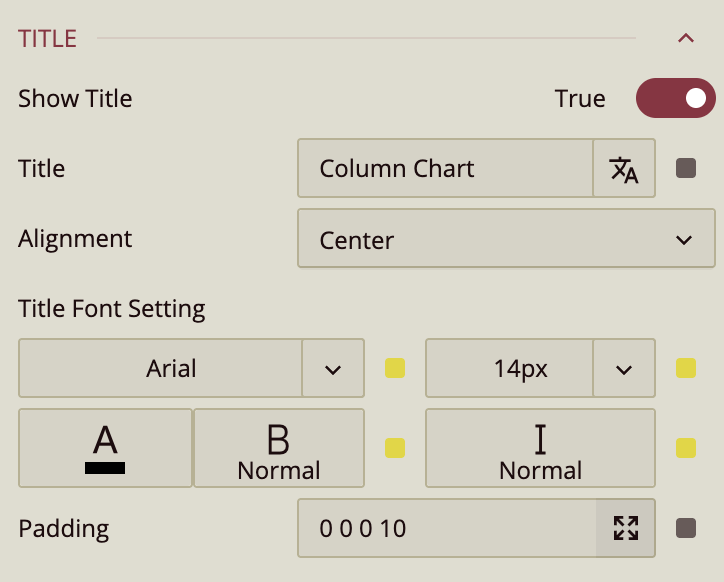

Title
Show Title: Toggle to show or hide the chart title.
Text: By default, displays the chart type name. Replace with custom text as needed.
Alignment: Position the title to the left, center, or right.
Font: Configure font family, size, color, weight, and style.
Padding: Add space around the title.
Appearance
Background: Apply a background color or image.
Padding / Margin: Adjust inner and outer spacing.
Visibility: Hide or show the chart.
Border: Configure color, width, and corner radius. A width greater than 0 displays the border.
Shadow: Enable a drop shadow and set its color and intensity.

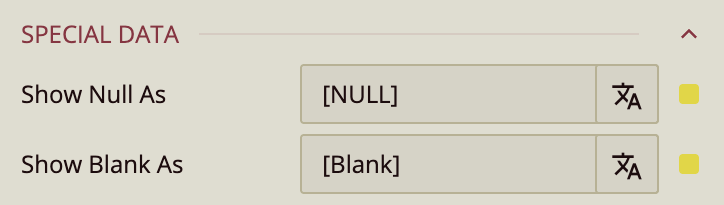

Special Data
Show Null As: Define how null values appear.
Show Blank As: Define how blank values appear.
No Data Content
Content: Message to display when no data is available.
Text Align: Position the text (left, center, or right).
Vertical Align: Adjust vertical placement.
Font: Configure font family, size, color, weight, and style.
Background Image: Optionally display an image when no data is available.
