Map Properties
The Combined Map scenario supports multiple map layers (bubble, area, symbol, heat, flow, and path) in a single visualization. You can customize its appearance, behavior, and interactions using the Inspector Panel on the right side of the dashboard designer.

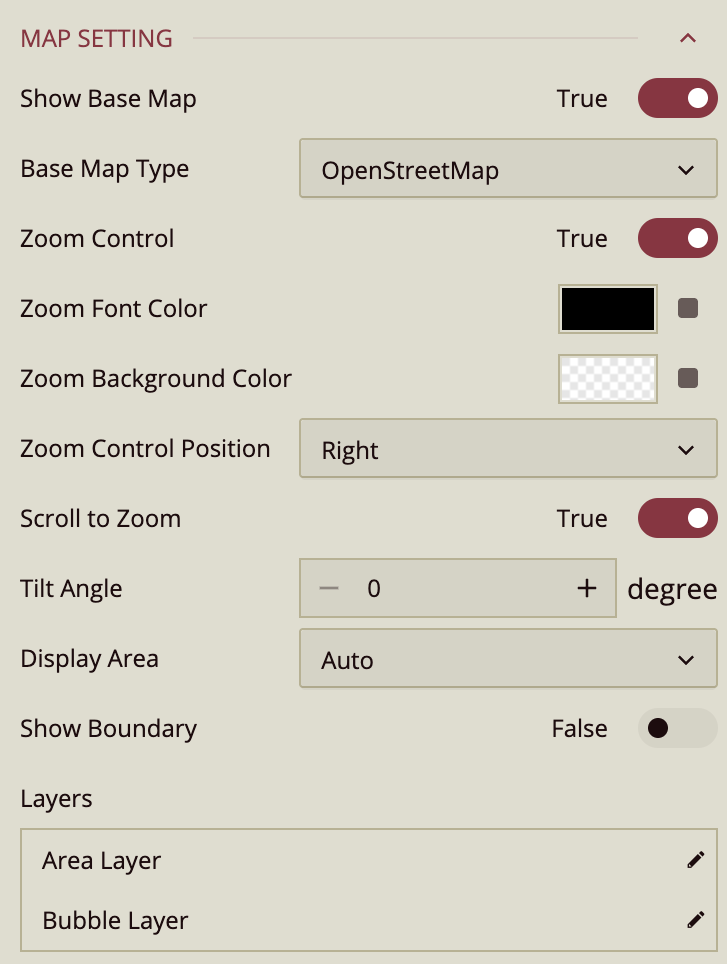

Map Settings
Show Base Map – Toggle the background reference map on or off. Wyn uses Mapbox GIS as the base map (enabled by default).
Base Map Type – Choose from:
OpenStreetMap (default)
Mapbox (if Mapbox is enabled in the Admin portal; allows normal, dark, light, or custom Mapbox styles)
Custom (use custom GIS base styles configured in the Admin portal)
Zoom Control – Enables a zoom panel on the map (range 1–19). You can configure:
Font Color – color of the zoom text
Background Color – background of the zoom panel
Position – place zoom control on the left or right side
Scroll to Zoom – If enabled, scroll wheel zooms in/out (default: True). If disabled, zoom only works with double-click.
Tilt Angle – Adjusts the vertical tilt of the map view (default: 0).
Display Area – Controls how the map zooms to fit data:
Auto – automatically fits all data points
By Area – zooms to a selected bubble or region
By Longitude & Latitude – manually set zoom level, longitude, and latitude
Show Boundary – Displays map boundaries. If enabled, configure:
Boundary Area – the region to outline
Boundary Color – line color
Boundary Width – line thickness
Layers – Manage style and settings for each layer of the combined map.
