3D Column E-Chart

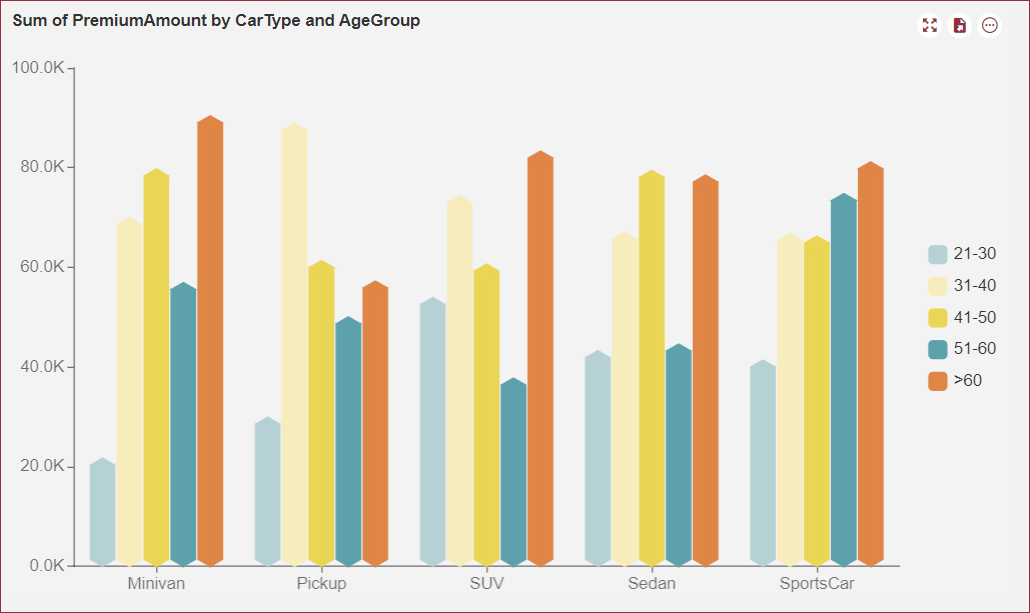

3D Column E-Charts in Wyn Enterprise offer a dynamic and visually engaging way to represent complex data, enabling you to extract valuable insights. 3D Column E-Charts transcend the limitations of traditional column charts by seamlessly incorporating depth and perspective, adding an extra dimension to your data visualization experience and helping in comprehending data hierarchies, patterns, and trends. Learn more about creating, customizing, and using a 3D Column E-Chart below.
In this help article, you will find the following information,
Create a 3D Column E-Chart
To create a 3D Column E-chart, navigate to the Resource or Document Portal and follow the below instructions,
Click the + Create button and then click the Create Dashboard option.
Select the Blank Dashboard option or select a template and click the Create button.
Navigate to the Custom Visualization tab from the Designer Toolbox and drag and drop the 3D Column Chart(Echarts) onto the design area.
Bind Dataset to 3D Column E-Chart
With the 3D Column E-Chart selected, choose a dataset from the Choose Data dropdown in the Data Binding panel.
Now, drag and drop the applicable dataset fields in the Values, Axis (Category), Legend (Series), and Tooltip data containers. You can also select a drill-down mode (Default, Pre-set Targets, or Pre-set Path) from the Mode dropdown under the Drill Down option. See theDrill Down help article for more information on drilling down in Wyn Enterprise.
Format Data Attributes
You can perform various operations in a 3D Column E-Chart to format the data attributes and control the data display. Use the settings icon in the Data Field containers to format data attributes. The following operations are included in the 3D Column E-Chart scenario;
Aggregation Method: Use the Aggregation Method option to display a summarized value by aggregating multiple values of a data attribute. Aggregation Method supports Sum, Average, Max, Min, Count, and Distinct Count methods. See the Aggregation Method help article for more information.
Quick Functions: Use the Quick Functions option to highlight key indicators in your chart scenario by applying powerful calculations on measures. Quick Functions in Wyn Enterprise support Date Based Functions, Ranking Calculation, Percentile Calculation, Running Calculation, Moving Calculation, and Original Value. See the Quick Functions help article for more information.
Filter: Use the Filter option to display relevant data in your chart scenario. See the Filter Data help article for more information.
Rename: Use the Rename option to change the name of a data attribute to make it comprehensible and meaningful. See the Rename a Data Attribute help article for more information.
Remove: Use the Remove option to remove a data attribute from the chart scenario.
Analyze Data
Wyn dashboard scenarios support rich data analysis and exploration capabilities to help you analyze massive amounts of information and make data-driven decisions. The following analysis operations are available in the Action Bar corresponding to each scenario in the designer;
Filter: To filter out relevant data in your chart scenario. See the Filter Data help article, for information on using the filter options in a dashboard scenario.
Sort: To arrange the chart data in a more meaningful order. See the Sort help article for information on using the sort options in a dashboard scenario.
Conditional Visualization: To filter, compare, and rant the data in a dashboard scenario. See the Conditional Visualization help article for information on using various visualization options.
Data Binding: To modify the data binding of the dashboard scenario with new attributes use the Data Binding option. See the Modify Data Binding help article for more information.
Focus: To expand the chart scenario to full-screen size, use the Focus option.
Customize Appearance
Navigate to the Inspector Panel and modify the settings as per your requirements. The properties of the 3D Column E-Chart are listed and described below.
CHART STYLE
Property | Description |
---|---|
Maintain Color Assignments | To change the color assignments of the column bars, turn the flag to True and change the color of the data items from the Assign Colors popup using the Color Assignment property. To use the default color palettes for the column bars, turn the flag to False and select a default color palette from the Palette property. By default, the value of the Main Color Assignment property is set as False. |
Color Assignment | Color Assignment property is visible only when the Maintain Color Assignment property is set to True. This property is used to manage the colors of the data items of the column bars. |
Palette | Palette property is visible only when the Maintain Color Assignment property is set to False. Palette is used to select the group of colors for the column bars. |
Graph Opacity | Use the Graph Opacity property to set the opacity level of the e-chart. The value of the Graph Opacity property ranges from 0% to 100%. |
Auto Gradient | To set an automatic color gradient in the chart, set the Auto Gradient property to True. By default, the value of this property is set as False. |
Show Mark Point | To display the minimum and maximum values of the chart, set the Show Mark Point property to True. By default, this property is set to False. |
Min Mark Point | To display the minimum value point, set the Min Mark Point property to True. By default, this property is set as False. |
Max Mark Point | To display the maximum value point, set the Max Mark Point property to True. By default, this property is set as False. |
Mark Point Color | Set the color of the mark point bubble using the *Mark Point Color property. |
Mark Point Font | Set the family, size, color, weight, and style of the mark point font using the Mark Point Font property. |
Canvas Position | Set the Left, Right, Top, and Bottom positions of the chart canvas using the Canvas Position property. |
Shape | Select the Cube or Cylinder option from the dropdown to set the shape of the column bars. |
Border Color | Select a border color for the column bars using this property. |
Shape Background | To enable the background shape on the chart scenario set this property to True. By default, this property is set as False. |
Shape Background Border Color | Select the border color of the background shape using this property. |
Shape Background Color | Select the color of the background shape using this property. |
Custom Echarts Option | Use the Custom Echarts Option to customize the chart using JavaScript code. |
ANIMATION
Property | Description |
---|---|
Entrance Animation | Select an option from the dropdown to set the animation style of the appearance of the chart scenario. After selecting an option (SlideInDown, SlideInLeft, SlideInRight, SlideInUp, SlideInDown, BackInDown, BackInLeft, or BackInRight) from the dropdown, set the delay and duration of the animation using the Delay(s) and Duration(s) properties respectively. |
DATA VISUALIZATION
Property | Description |
---|---|
Automatic Carousel | To highlight the columns one at a time and display the tooltip, set the Automatic Carousel property to True. By default, this property is set to False. |
Interval (seconds) | |
Include All Dimensions | To include the labels with Null values in the chart scenario, set this property to True. |
Show Zoom Axis | To display the Zoom Axis on the chart scenario set the Show Zoom Axis property to True. |
Zoom Axis Size | Set the size of the zoom axis ranging between 10 to 30 using the Zoom Axis Size property. |
Zoom Axis Default Length | Set the default length of the zoom axis using the Zoom Axis Default Length property. |
Zoom Axis Color | Select the color of the zoom axis using the Zoom Axis Color property. |
INTERACTION
Property | Description |
---|---|
Scenario Name | Add a name to the chart scenario using this property. |
Cross Filter | To reflect the filtered data throughout the dashboard, set this property to True. Cross filters provide a simplified and deeper analysis of what you want to observe. |
Jump To | To create a shortcut to another dashboard scenario, report, or URL use this property. See the Jump To help article for more information. |
Auto Refresh | Set None, Polling, or Real Time option from the dropdown to refresh the chart data. Dropdown options are described below, None - Select None to disable auto-refresh of the chart data. Polling - Select Polling to enable auto refresh and set an interval to refresh chart data in the Refresh Interval property. |
Visible Menu Items | Select the filtering and sorting options you wish to display on the chart scenario from the dropdown. |
Pin Annotation | To pin the annotation to the chart scenario, set this property to True. By default, this property is set as False. |
Context Menu Actions | Select multiple Context Menu Options from the dropdown. Context Menu Options include - Keep, Exclude, Jump, and Add Data Monitoring. |
Click Action | Select None, Show Tooltip, Keep, Exclude, or Jump option from the dropdown to perform an action on click. |
Command | |
Single Selection | To allow a single selection of chart instances, set this property to True. By default, this property is set as False. |
DATA LABELS
Property | Description |
---|---|
Show Data Labels | To display data labels set the Show Data Label property to True. By default, the value of the Show Data Label property is set to False. |
Value | To disable the display of the data label values set the Value property to True. By default, the value of the Value property is set to False. |
Display Unit | Select a display unit option from the dropdown. The available options are Auto, None, Thousands, Millions, Billions, and Trillions. |
Series Name | To display the name of the data label series set the Series Name property to True. By default, the property is set to False. |
Category Name | To display the data label category names set the Category Name property to True. By default, the property is set to False. |
Location | Select the Inside or Outside option from the dropdown to display the data labels inside or outside the column bars. |
Display Mode | Select an option from the dropdown to set the display mode of the data labels. The available options are Auto and All. |
Data Label Font Setting | Set the font family, font size, font color, font weight, and font style of the data labels using this property. |
AXIS(CATEGORY)
Property | Description |
---|---|
Show Axis | To hide the Category (X) Axis, set this property to False. By default, this property is set as True. |
Axis Position | Select the Zero, Bottom, or Top option from the dropdown to set the position of the Category (X) Axis. |
Show Axis Line | To hide the Category (X) Axis line, set this property to False. By default, this property is set as True. |
Axis Line Type | Select Solid or Dashed line type for the Category (X) Axis line from the dropdown. |
Axis Line Color | Set the color of the Category (X) Axis line using this property. |
Axis Line Width | Set the Category (X) Axis line width using this property. |
Show Grid Lines | To show the grid line of the Category (X) Axis, set this property to True. By default, this property is set as False. |
Grid Line Type | Select Solid or Dashed type of grid lines for the Category (X) Axis from the dropdown. |
Grid Line Color | Set the color of the grid lines of the Category (X) Axis. |
Grid Line Width | Set the width of the grid lines of the Category (X) Axis |
Show Split Area | To highlight the split area on the chart, set the Show Split Area property to True. By default, the property is set to False. |
Odd Area Color | Select a color to highlight the odd area. |
Even Area Color | Select a color to highlight the even area. |
Show Tick Labels | To hide the tick labels of the Category (X) Axis, set this property to False. By default, this property is set as True. |
Label Direction | Select the Horizontal, Vertical, or Diagonal option from the dropdown to set the direction of the Category (X) Axis labels. |
Label Overflow Setting | Select Hide, Ellipsis, or Wrap option from the dropdown for the overflowing text of the labels. |
Show Tick Marks | To hide the tick marks of the Category (X) Axis, set this property to False. By default, this property is set as True. |
Show Title | To show the title of the Category (X) Axis, set this property to True. By default, this property is set as False. |
Title Offset | Set the offset distance of the title from the Category Axis using this property. |
Axis Font Setting | Set the font family, size, color, weight, and style of the Category (X) Axis labels using the Axis Font Setting options. |
VALUE AXIS
Property | Description |
---|---|
Show Axis | To hide the Value (Y) Axis, set this property to False. By default, this property is set as True. |
Max Value | Set the maximum value of the Value (Y) Axis labels using the Max Value property. |
Min Value | Set the minimum value of the Value (Y) Axis labels using the Min Value property. |
Interval | Set the interval between two labels of the Value (Y) Axis using the Interval property. |
Reversed | To reverse the appearance of the chart scenario, set this property to True. By default, this property is set as False. |
Axis Position | Select the Left or Right option from the dropdown to set the position of the Value (Y) Axis. |
Show Axis Line | To hide the Value (Y) Axis line, set this property to False. By default, this property is set as True. |
Axis Line Type | Select Solid or Dashed line type from the dropdown for the Value (Y) Axis line. |
Axis Line Color | Set the color of the Value (Y) Axis line using this property. |
Axis Line Width | Set the Value (Y) Axis line width using this property. |
Show Grid Lines | To show the Value (Y) Axis grid line, set this property to True. By default, this property is set as False. |
Grid Line Type | Select Solid or Dashed type of grid lines for the Value (Y) Axis from the dropdown. |
Grid Line Color | Set the color of the grid lines of the Value (Y) Axis. |
Grid Line Width | Set the width of the grid lines of the Value (Y) Axis. |
Show Split Area | To highlight the split area on the chart, set the Show Split Area property to True. By default, the property is set to False. |
Odd Area Color | Select a color to highlight the odd area. |
Even Area Color | Select a color to highlight the even area. |
Show Tick Labels | To hide the tick labels of the Value (Y) Axis, set this property to False. By default, this property is set as True. |
Format | Set a general, number, currency, percentage, or a custom format for the labels of the Value (Y) Axis. |
Display Unit | Select Auto, None, Thousands, Millions, Billions, or Trillions option from the dropdown to set the display units of the Value (Y) Axis labels. |
Label Direction | Select the Horizontal, Vertical, or Diagonal option from the dropdown to set the direction of the Value (Y) Axis labels. |
Show Tick Marks | To hide the tick marks of the Value (Y) Axis, set this property to False. By default, this property is set as True. |
Show Title | To show the title of the Value (Y) Axis, set this property to True. By default, this property is set as False. |
Show unit's label | |
Title Offset | Set the offset distance of the title from the Value Axis using this property. |
Axis Font Setting | Set the font family, size, color, weight, and style of the Value (Y) Axis labels using the Axis Font Setting options. |
