Footer

Common

Caption

• Defines the title displayed in the footer.

• Default: <Empty>

• Data Binding supported.

Background

Color

• Sets the background color of the footer.

• Current value: Transparent, other options: Palettes, Other Colors, Web Colors

• Data Binding supported.

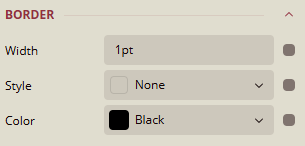

Border

Width

• Sets the thickness of the border around the footer.

• Default value: 1pt

• Data Binding supported.

Style

• Defines the border style.

• Current value: None, other options: Dotted, Dashed, Solid, etc.

• Data Binding supported.

Color

• Sets the color of the border.

• Current value: Black, other options: Palettes, Other Colors, Web Colors

• Data Binding supported.

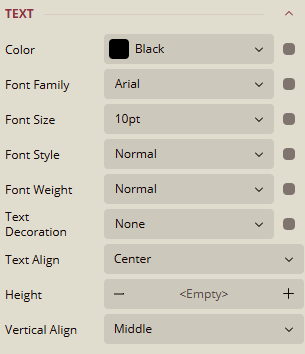

Text

Color

• Sets the color of the footer text.

• Current value: Black, other options: Palettes, Other Colors, Web Colors

• Data Binding supported.

Font Family

• Specifies the font used in the footer.

• Current value: Arial, include other options.

• Data Binding supported.

Font Size

• Sets the size of the footer text.

• Current value: 10pt

• Data Binding supported.

Font Style

• Defines the style of the font.

• Current value: Normal, other option: Italic

• Data Binding supported.

Font Weight

• Specifies the weight of the font.

• Current value: Normal, other options: Lighter, Thin, ExtraLight, Light, etc.

• Data Binding supported.

Text Decoration

• Applies additional styling such as Underline, Overline, and LineThrough

• Current value: None

• Data Binding supported.

Text Align

• Controls horizontal alignment of the text.

• Current value: Center, other options: Left and Right.

Height

• Specifies the height of the footer element.

• Default: <Empty>

• Use (+) and (–) to adjust.

• Data Binding supported.

Vertical Align

• Controls vertical alignment of the text.

• Current value: Middle, other options: Top, Bottom

• Data Binding supported.

Layout

Padding

• Sets the spacing around the footer content.

• Values: Top: 0pt, Right: 4pt, Bottom: 0pt, Left: 2pt

• Expandable for more options.

• Data Binding supported.
