Decomposition Tree

Decomposition tree charts are a visualization used to break down a measure into its contributing factors across multiple dimensions. You can use decomposition trees to analyze hierarchical or categorical data and uncover insights by drilling down into the components that make up a total. This article explains the requirements for decomposition tree charts and details key properties, including data binding, drill-down configuration, and customization options.

Data Binding

The Data Binding tab allows you to assign data fields to decomposition tree elements and configure how the data is displayed.

  • Values – Drag a numeric field here to define the measure for each node.

    • Ellipsis menu:

      • Data Format – Opens the data format dialog to customize number formatting.

      • Display Unit – Choose how values are scaled: Auto (default), None, Thousands, Millions, Billions, or Trillions.

  • Analyze By – Drag a field here to define the dimension by which nodes are analyzed and split.

  • Tooltip – Drag one or more fields here to display additional information when a user hovers over a node.

    • Ellipsis menu: Opens a settings window with a text editor to customize the tooltip content.

Property Reference

Chart Style

Decomposition tree charts in Wyn can be extensively styled and configured using the Inspector panel. Below are key settings you can modify:

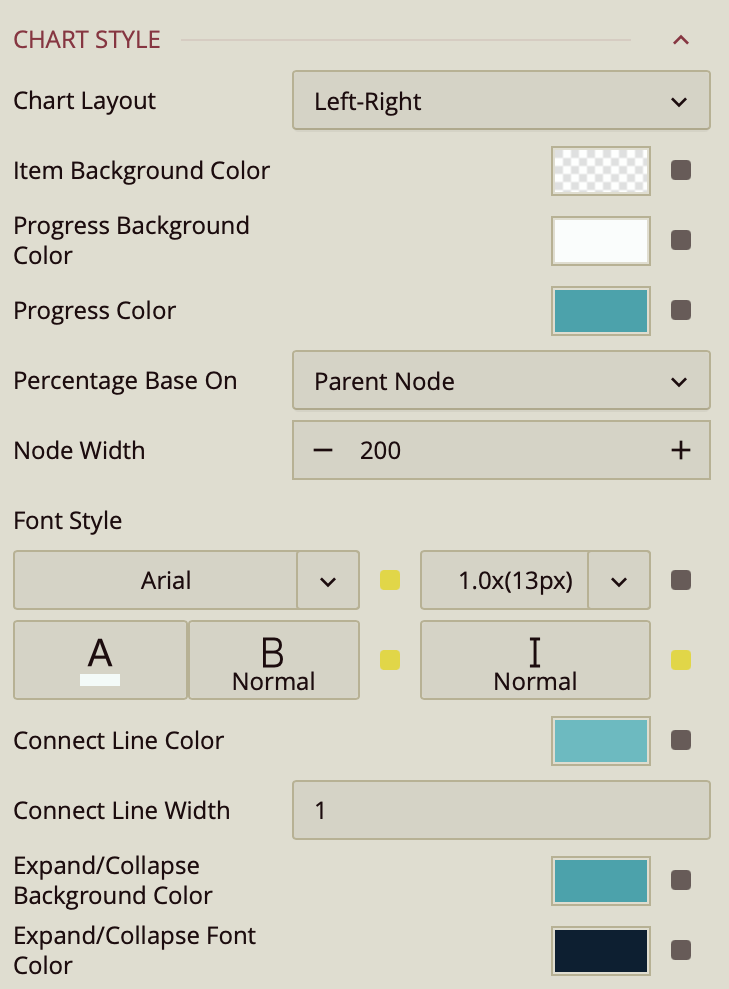

Chart Style


  • Chart layout – Select the orientation of the decomposition tree. Options: Left-Right (default) or Right-Left.

  • Item background color – Specify the background color for tree items. Default is taken from the color palette.

  • Progress background color – Specify the background color for progress indicators. Default is taken from the color palette.

  • Progress color – Specify the color for progress indicators. Default is taken from the color palette.

  • Percentage based on – Select the reference point for percentage calculations. Options: Parent node (default) or Root node.

  • Node width – Enter a numeric value to set the width of each node. Default: 200.

  • Font style – Configure the font family, size, color, weight, and style for text in the tree.

  • Connect line color – Specify the color of the connecting lines between nodes. Default is taken from the color palette.

  • Connect line width – Enter a numeric value to set the thickness of connecting lines.

  • Expand/collapse background color – Specify the background color for expand/collapse controls. Default is taken from the color palette.

  • Expand/collapse font color – Specify the font color for expand/collapse controls. Default is taken from the color palette.
