Bar Chart

Overview

Bar charts are a visualization used to display data across categories using horizontal bars. You can use bar charts when you want to emphasize category names, accommodate longer labels, or compare values side-by-side with a layout that is easier to read than vertical columns. Bar charts support grouped, stacked, percent stacked, and trellised configurations, giving you flexibility to analyze multiple dimensions simultaneously. This article explains the requirements for creating a bar chart and outlines the key properties that determine its layout, formatting, and interactive behavior.

Example

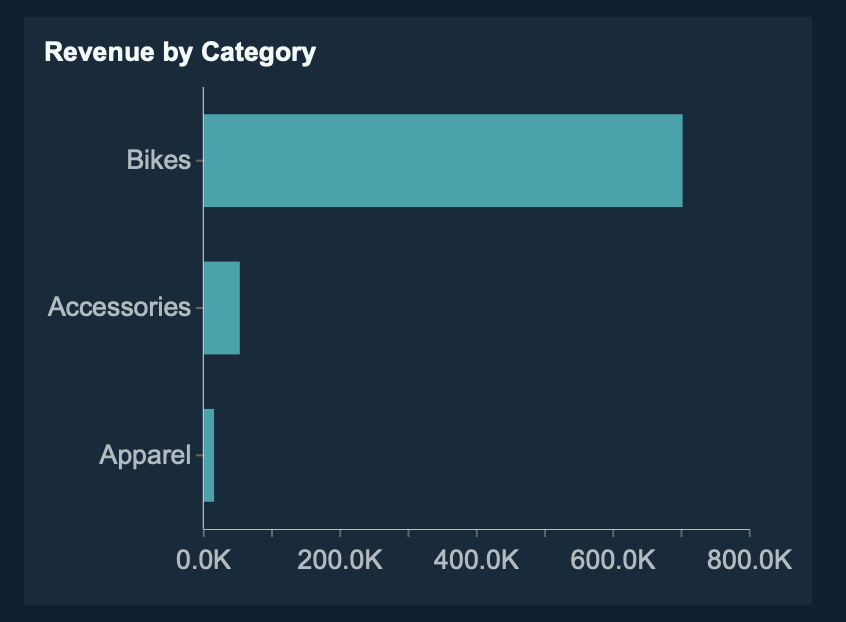

This is an example of the bar chart that displays Revenue by Category, using the following Excel sample data:

SalesData.xlsx

The Revenue measure is bound to the Value data binding slot. The Category measure is bound to the Axis (Category) slot. The title has been set to Revenue by Category.

Data Binding

The Data Binding tab lets you map your dataset fields to the chart’s visual elements. The available data binding slots determine what data is displayed and how it appears in the chart.

• Values – Bind the numeric field or measure that determines the size/length/value of each bar, slice, point, or shape. Larger values produce proportionally larger bars/slices/points.

• Axis (Category) – Bind the field whose distinct values define each bar/slice/point category. These values appear along the X-axis, Y-axis, or around the circledepending on the chart type.

• Legend (Series) – Bind the field that determines the grouping shown in the chart legend. Use this to categorize and color bars/slices/lines by an additional dimension.

• Trellis Columns – Bind a field to create multiple charts arranged in columns, each filtered by a unique value in that field.

• Trellis Rows – Bind a field to create multiple charts arranged in rows, each filtered by a unique value in that field.

• Tooltip – Bind additional fields to display as contextual information when users hover over a bar, slice, point, or shape.

• Drill Down – Configure interactive navigation into more detailed data. You can set Drill Down Mode to:

  • Pre-set Targets – Specify fields or charts to drill into when an element is clicked.

  • Pre-set Paths – Define a hierarchical path so users can explore data through multiple levels.

Customize Bar Chart

Simple Bar Chart

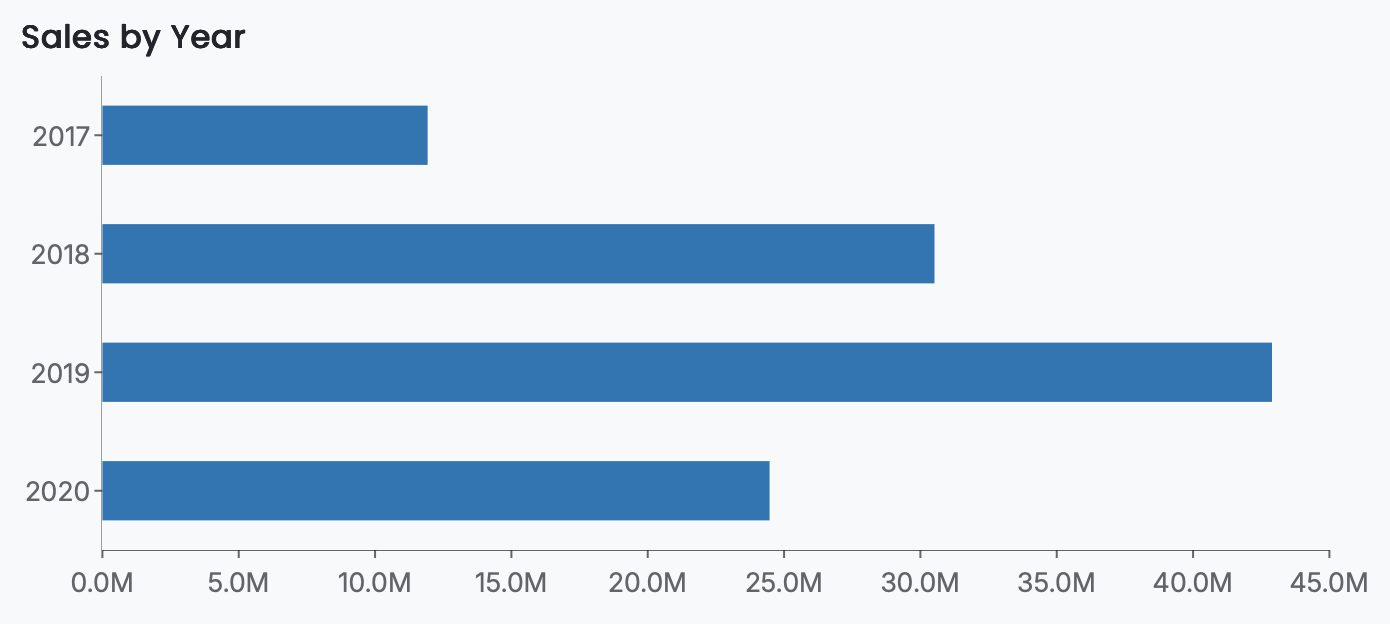

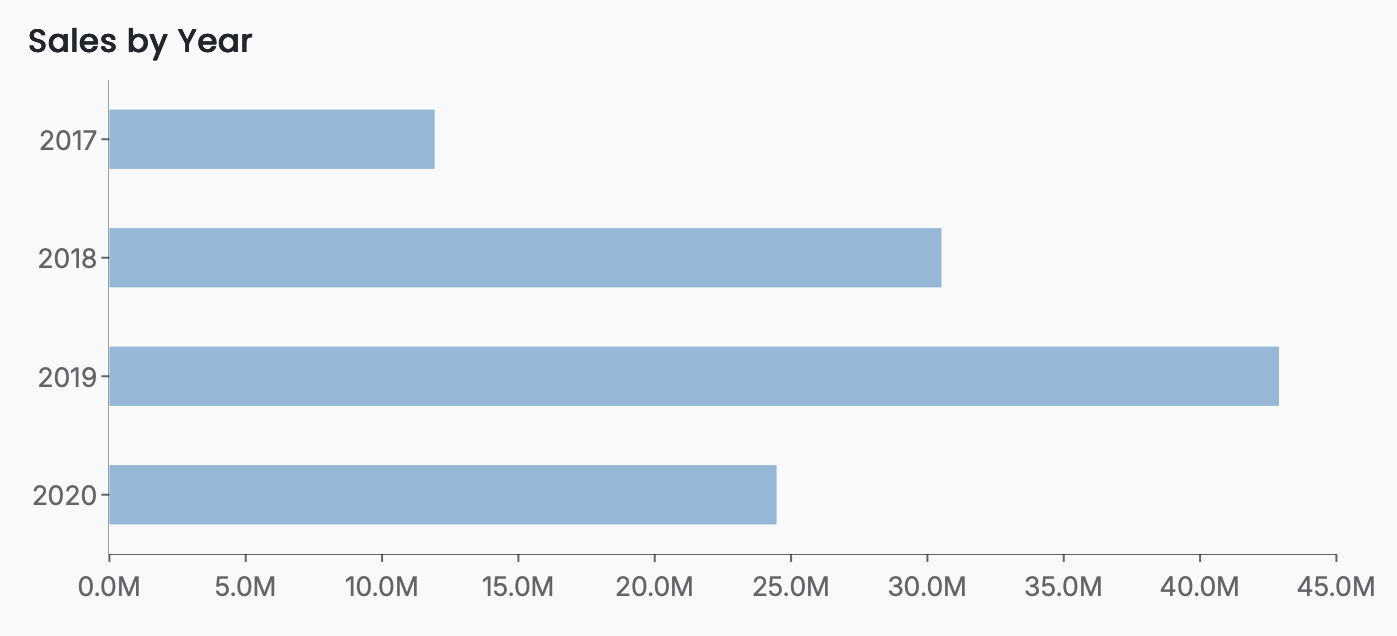

A standard bar chart displays a numeric measure along a horizontal axis with categories arranged vertically, allowing users to compare values across discrete categories with an emphasis on category labels. After adding the visualization to the designer and binding your dataset, configure the following fields in the Data Binding tab:

• Values – The measure plotted along the horizontal axis. This slot typically contains numerical data such as totals, amounts, or counts.

• Axis (Category) – The category field displayed on the vertical axis. This slot typically contains categorical data, such as time periods, product groups, or locations.

For example, a simple bar chart may plot Sales Amount in the Values slot and Year in the Axis (Category) slot, producing a straightforward visualization of sales trends over time.

Create a Grouped Bar Chart

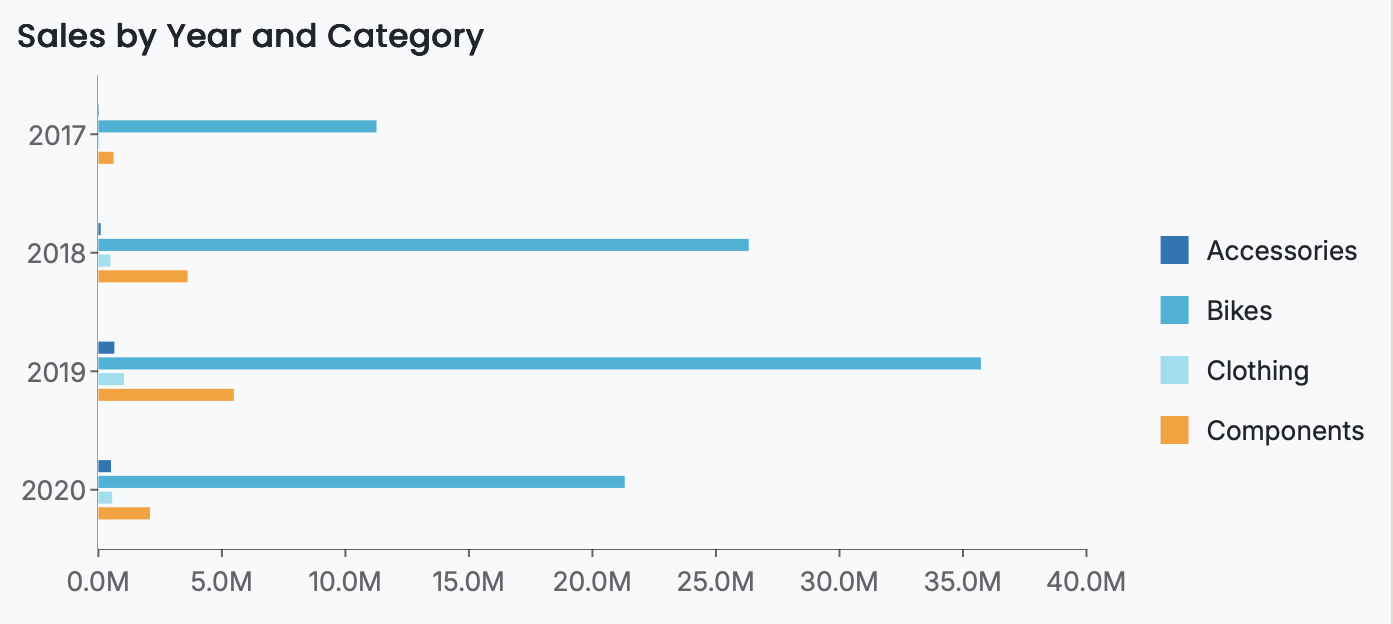

A grouped bar chart expands on the standard bar layout by comparing multiple groups within each category. Rather than displaying a single bar per category, the chart divides each category into multiple bars based on a secondary grouping, enabling side-by-side comparisons within the same category.

To configure a grouped bar chart, assign the following fields in the Data Binding tab:

• Values – The numeric measure plotted on the horizontal axis.

• Axis (Category) – The primary categorical field displayed on the vertical axis.

• Legend (Series) – A secondary categorical field used to define groups within each category. Each unique series value is rendered as a separate bar within the category group.

For example, you might bind Sales Amount to Values, Year to Axis (Category), and Product Category to Legend (Series). This produces grouped bars for each product category within each year.

Create a Grouped Bar Chart with Multiple Series

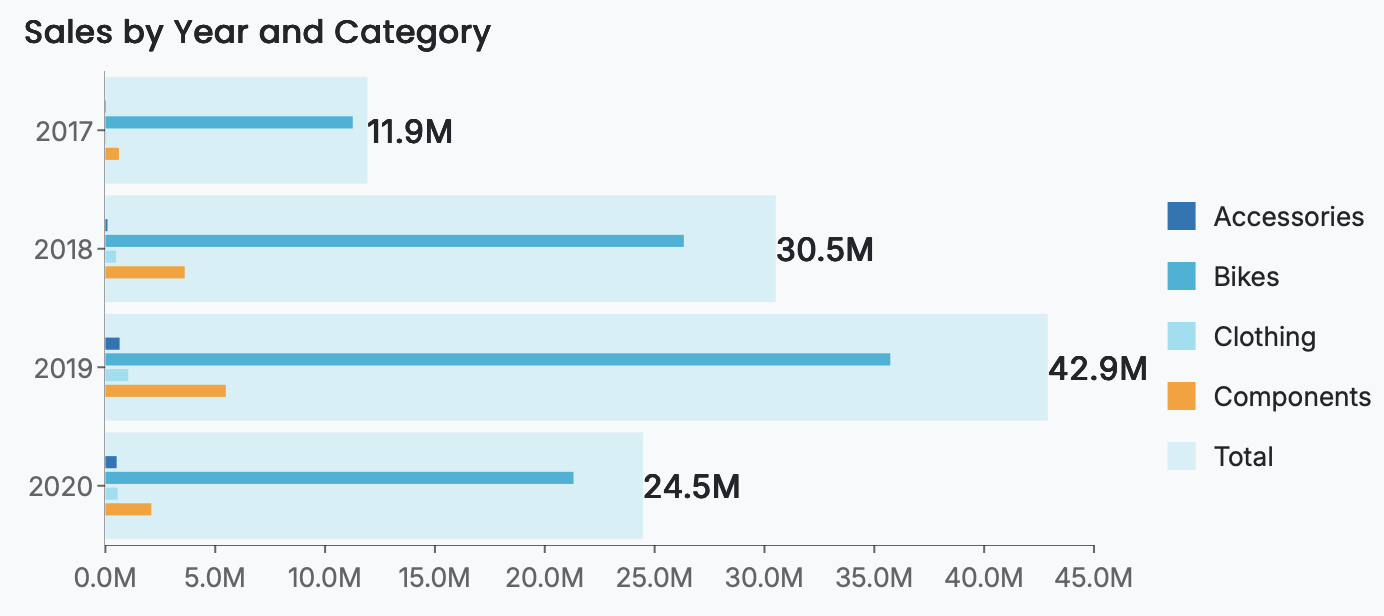

A grouped bar chart with multiple series enhances the grouped layout by displaying the cumulative total of each category as a background reference. This additional context makes it easier to evaluate both individual series performance and overall category totals at the same time.

Configuration begins the same way as a standard grouped bar chart. Once the data bindings are set, open the Inspector Panel and enable Show Series Total under the Series properties. This overlays the aggregate values behind each group, visually emphasizing the total for each category.

Customize the Chart Style

The Chart Style section contains the visual and formatting settings that define the appearance of your column chart. These options are managed in the Inspector Panel and include layout, spacing, color, and stylistic adjustments that help you tailor the chart to your dashboard’s design requirements.

Scenario Name

The Scenario Name is the label shown in Wyn’s Explorer.

• Choose a name that reflects the purpose of the visualization.

• For more details, see Explorer documentation.

Palette

Controls whether the chart uses theme colors or custom colors.

• Off (default): chart uses the dashboard theme.

• On: unlocks manual color selection for each column.

Color Assignments

Defines custom colors when Maintain Color Assignments is enabled.

• Assign colors to individual categories or series.

• Use when theme colors do not meet your design needs.

Graph Opacity

Adjusts the transparency of the columns.

• Default is 100% (fully opaque).

• Lower values create translucent columns for layered or subtle visual styles.

Auto Gap Width

Automatically manages spacing between columns.

• On: Wyn determines optimal spacing.

• Off: manually set Category Gap and Series Gap.

• Category Gap controls spacing between categories; Series Gap controls spacing within grouped columns.

Corner Radius

Rounds the edges of the columns.

• Apply a uniform radius or expand to set values per corner.

• Use for softer, more modern visual styling.

Auto Gradient

Applies a gradient fill to column colors.

• On: Wyn auto-generates gradient effects.

• Off: columns use flat colors.

Padding

Adds spacing between the chart and the scenario’s boundaries.

• Increase padding for a more open layout.

• Reduce padding to maximize plot area.
